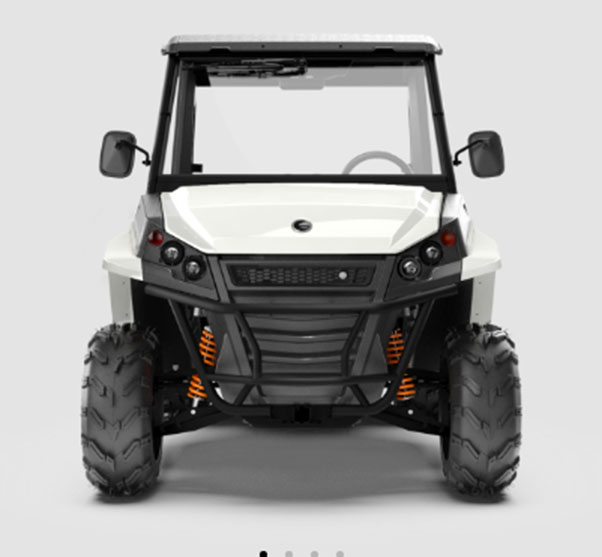

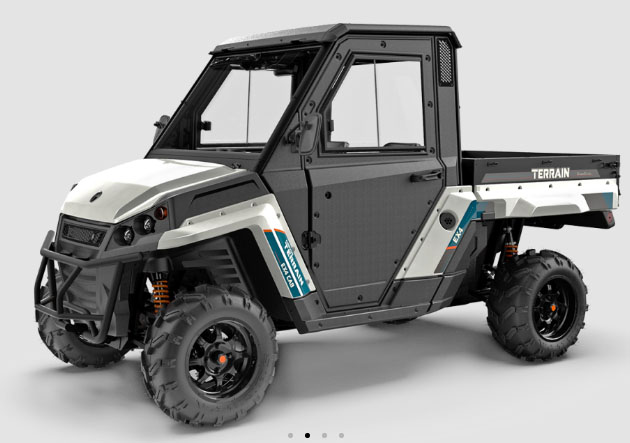

Corvus TerraneX4

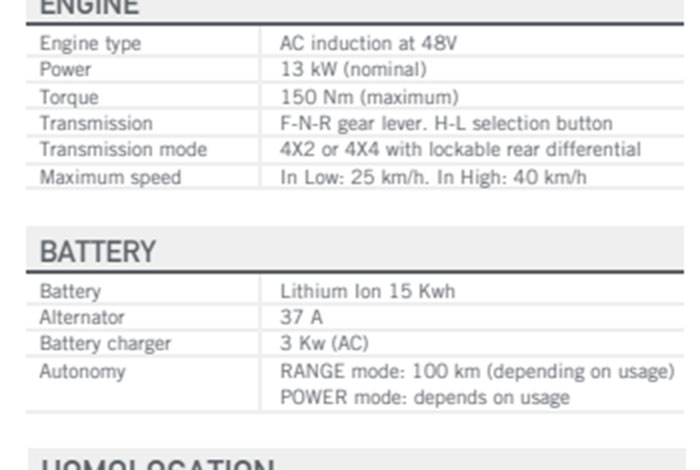

Battery: Lithium Ion 15 Kwh
Alternator: 37 A
Battery charger: 3 Kw (AC)
Autonomy: RANGE Mode: 100 km (depends on usage). POWER Mode: depends on usage.
Engine
Engine type: AC induction at 48V.
Power: 13 kW (nominal)
Torque: 150 Nm (maximum)
Transmission: F-N-R lever. Selector button for H-L.
Transmission mode: 4X2 or 4X4 with lockable rear differential.
Maximum speed: In LOW: 25 km/h. In HIGH: 40 km/h.
Dimensions
L x W x H (mm) : 3414 x 1656 x 1973
Wheelbase: 2238 mm
Ground clearance: 309 mm
Dry weight: 897 kg
Towing capacity: In LOW 755 kg. In HIGH: 479 kg
Total payload capacity: 620 kg
Chassis
Front tyre: 26×9. R14
Rear tyre: 26×11. R14
Rims: 14″ steel
Front brakes: Double piston hydraulic.
Rear brakes: Hydraulic disc brakes.
Parking brake: Yes.
Suspensions front and rear: Both with independent double wishbones. 287 mm travel.
Protections: Underbody guards.
Hitch: Front hitch adapter and 2″ rear ball.
Lights: LED (rear).
Turning radius: 4,42 m.
Nº passengers: 2.
Cargo box
Dimensions L x W x H: 1340 x 1202 x 300 mm
Material: Steel.
Load capacity: 300 kg
