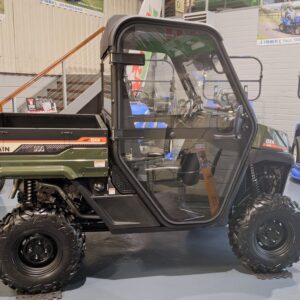

Corvus Terrain EX4 Battery UTV

Manufactured in Spain, the Corvus Terrain EX4 electric 4×4 UTV buggy tackles all-terrains quickly and quietly.

SKU: EX4 Terrain Categories: , Brand:
Corvus

Battery
Battery: Lithium Ion 15 Kwh
Alternator: 37 A
Battery charger: 3 Kw (AC)
Autonomy: RANGE Mode: 100 km (depends on usage). POWER Mode: depends on usage.

Engine
Engine type: AC induction at 48V.
Power: 13 kW (nominal)
Torque: 150 Nm (maximum)
Transmission: F-N-R lever. Selector button for H-L.
Transmission mode: 4X2 or 4X4 with lockable rear differential.
Maximum speed: In LOW: 25 km/h. In HIGH: 40 km/h.

Dimensions
L x W x H (mm) : 3414 x 1656 x 1973
Wheelbase: 2238 mm
Ground clearance: 309 mm
Dry weight: 897 kg
Towing capacity: In LOW 755 kg. In HIGH: 479 kg
Total payload capacity: 620 kg

Chassis
Front tyre: 26×9. R14
Rear tyre: 26×11. R14
Rims: 14″ steel
Front brakes: Double piston hydraulic.
Rear brakes: Hydraulic disc brakes.
Parking brake: Yes.
Suspensions front and rear: Both with independent double wishbones. 287 mm travel.
Protections: Underbody guards.
Hitch: Front hitch adapter and 2″ rear ball.
Lights: LED (rear).
Turning radius: 4,42 m.
Nº passengers: 2.

Cargo box
Dimensions L x W x H: 1340 x 1202 x 300 mm
Material: Steel.
Load capacity: 300 kg

CORVUS Terrain EX4 Electric UTV

The CORVUS Terrain EX4 Electric UTV is an electric 4×4 utility vehicle that adapts perfectly to the demands of any workday.

With OFF ROAD capabilities, this UTV can travel up to 100 km on a single charge and offers the precise power to satisfy all your needs.

An efficient and environmentally friendly option for your work activities!

EX4 Features at a Glance

  • 13kW Electric Motor
  • Two Driving Modes = Range & Power
  • Max Speed: In LOW = 25kmph / In HIGH = 40kmph
  • Can travel up to 100km on a single charge
  • Fast and convenient charging
  • Steel Cargo Box – load capacity 300kg
  • Comfortable and Spacious Cab
  • Excellent Viewing of all angles from Cab
  • Towing Capacity: In LOW = 907kg / In HIGH = 450kg

Fully Electric, and all the Power you Want!

The Corvus Terrain EX4 is 100% fully electric and allows you to enjoy your work in difficult terrain with a 13 kW electric motor, which provides enough power to transport and tow large loads with ease.

The Terrain EX4 has a double power selector – RANGE / POWER – which allows you to electronically choose the driving mode suitable to successfully carry out the most demanding of jobs.

Comfortable & Spacious Cab

The size and height of the cab and it’s windows, allows it’s operator a panoramic, obstacle free view of their surroundings while also being spacious enough inside for the operator and one other to be comfortable across any terrain.

In addition, the absence of obstacles between seats allows for really easy entry and exit from the vehicle.

Lots of Space and Storage Room

The EX4 is a heavy-duty vehicle designed to transport people and materials in comfort. It’s large, spacious cab not only keeps you safe thanks to its anti-roll bar but, also provides panoramic, obstacle free visibility.



Spacious Cargo Box

Despite it’s large size and sturdiness, the rear cargo box – which is made of steel and can handle up to 300kg – is surprising agile and can be easily lifted. In addition, installing an electro-hydraulic kit will make it really easy to unload it.
