ISEKI TM Compact Tractor Range
The ISEKI TM Compact Tractor Range – High Spec, Lightweight, Compact and easily manoeuvrable. The TM Range caters to a wide range of different applications.
TM Range (TM3187, TM3217, TM3267)
Compact, high specification, lightweight and easily manoeuvrable in tight areas, the TM3217 and TM3267 range of tractors are ideally suited to glasshouses and horticultural settings where space is tight. Alternatively natural and artificial sportsturf areas, gardens and schools where high lift capacity is required to run numerous implements but the low ground pressure avoids damage to the turf.
The TM3187 is ISEKI’s most compact tractor with a 16hp engine, four wheel drive, power steering and compact dimensions, making it the ideal workhorse for restricted environments.
Features at a Glance:
- 1,123cc three-cylinder diesel, water cooled 19hp engine (TM3217)
- 1,498cc three-cylinder diesel, water cooled 25hp engine (TM3267)
- F3/R3 Hydrostatic two-pedal Transmission
- OR F8/R8 Mechanical Transmission with synchro-shuffle shift

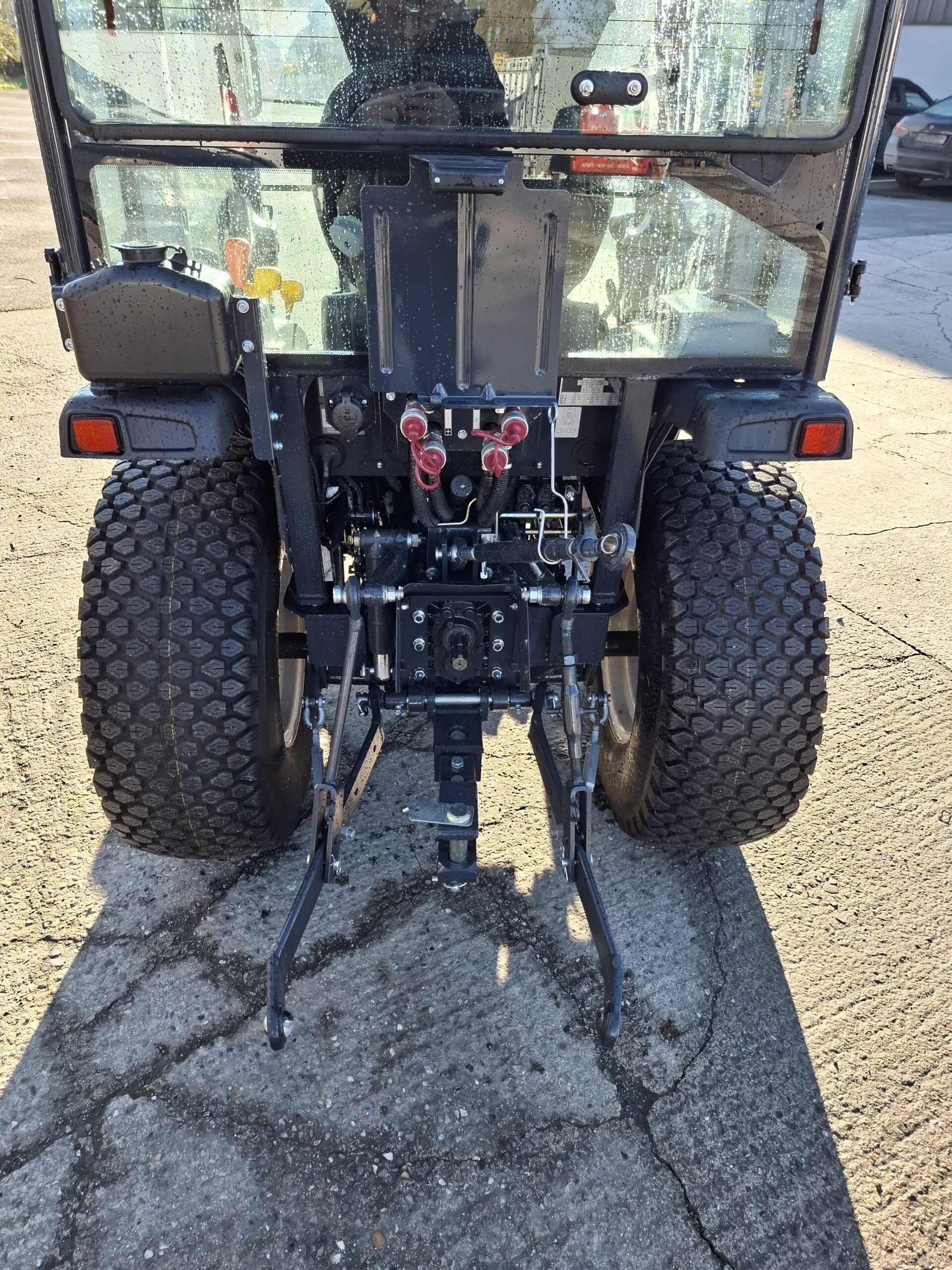

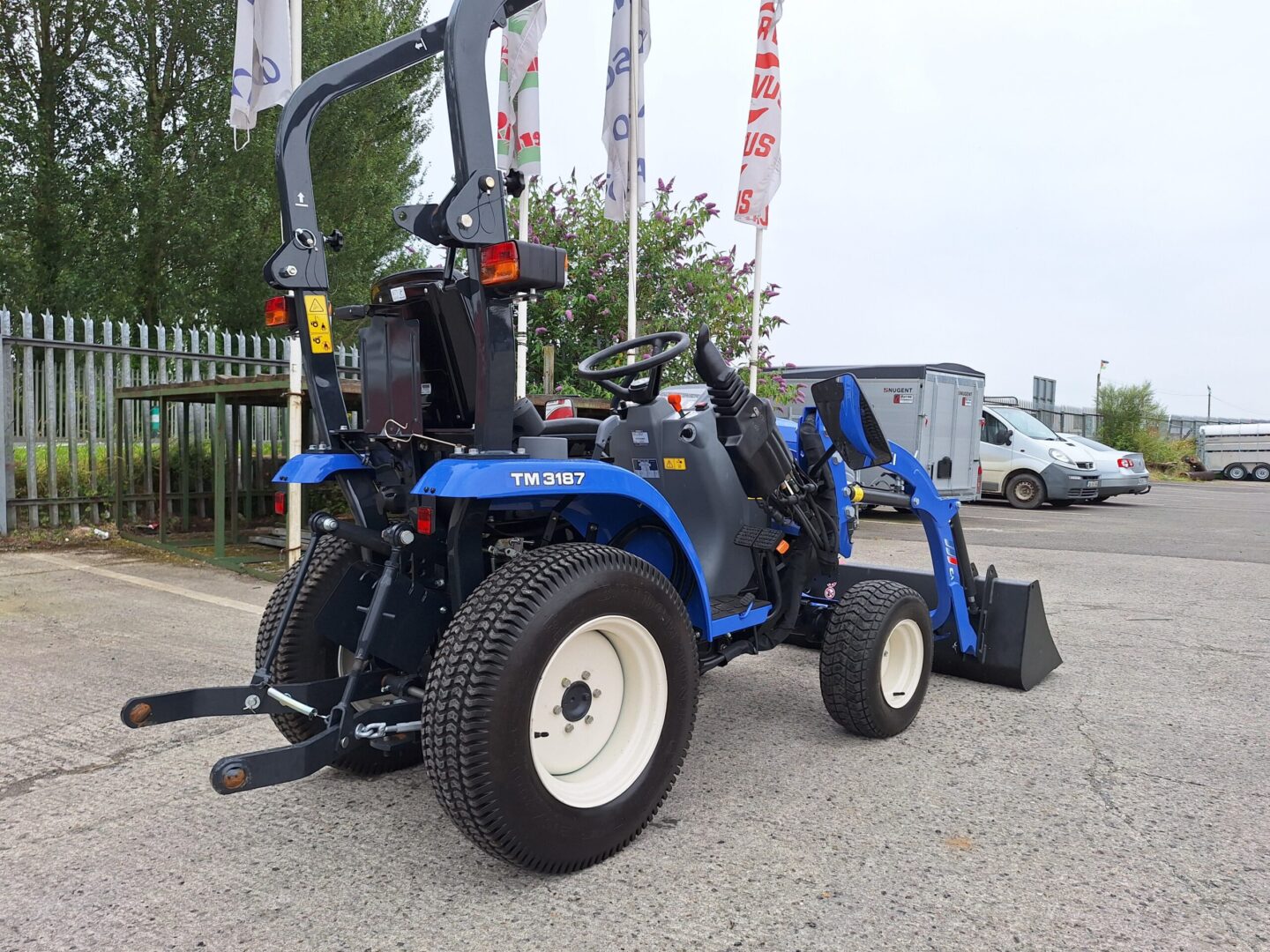

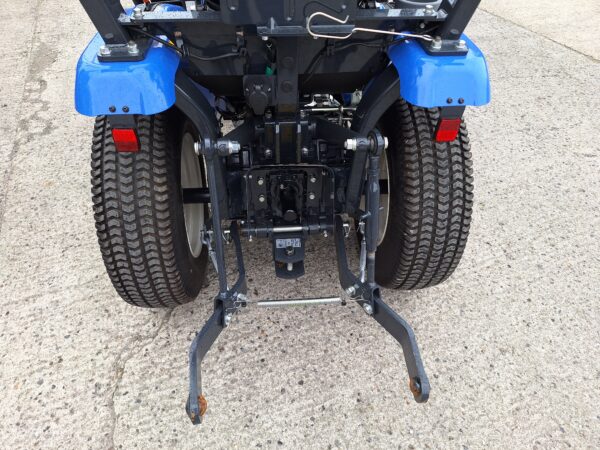

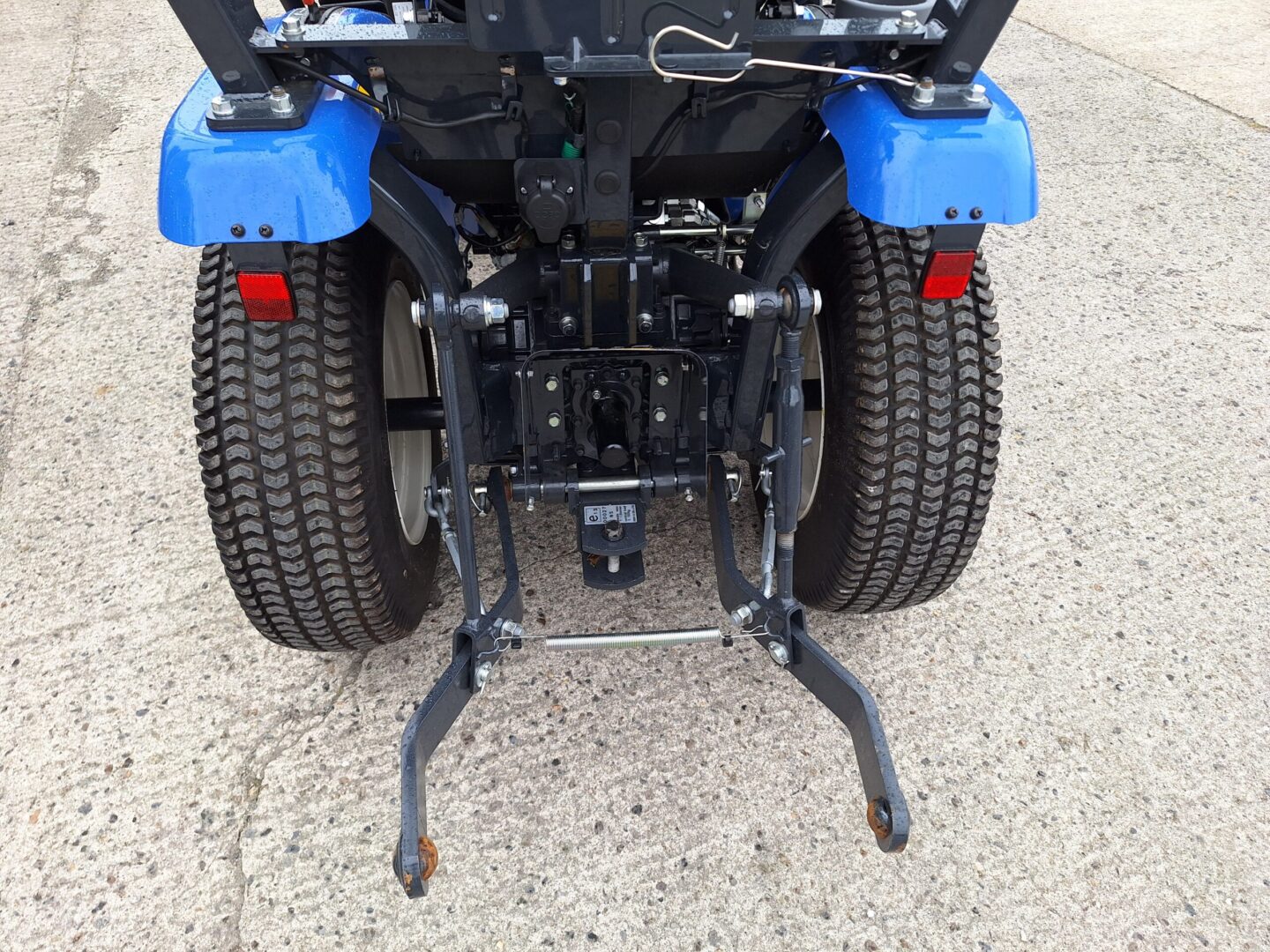

- Category 1 3-point linkage
- Lift Capacity of 600kg
- Selectable 2WD & 4WD
- Power Steering

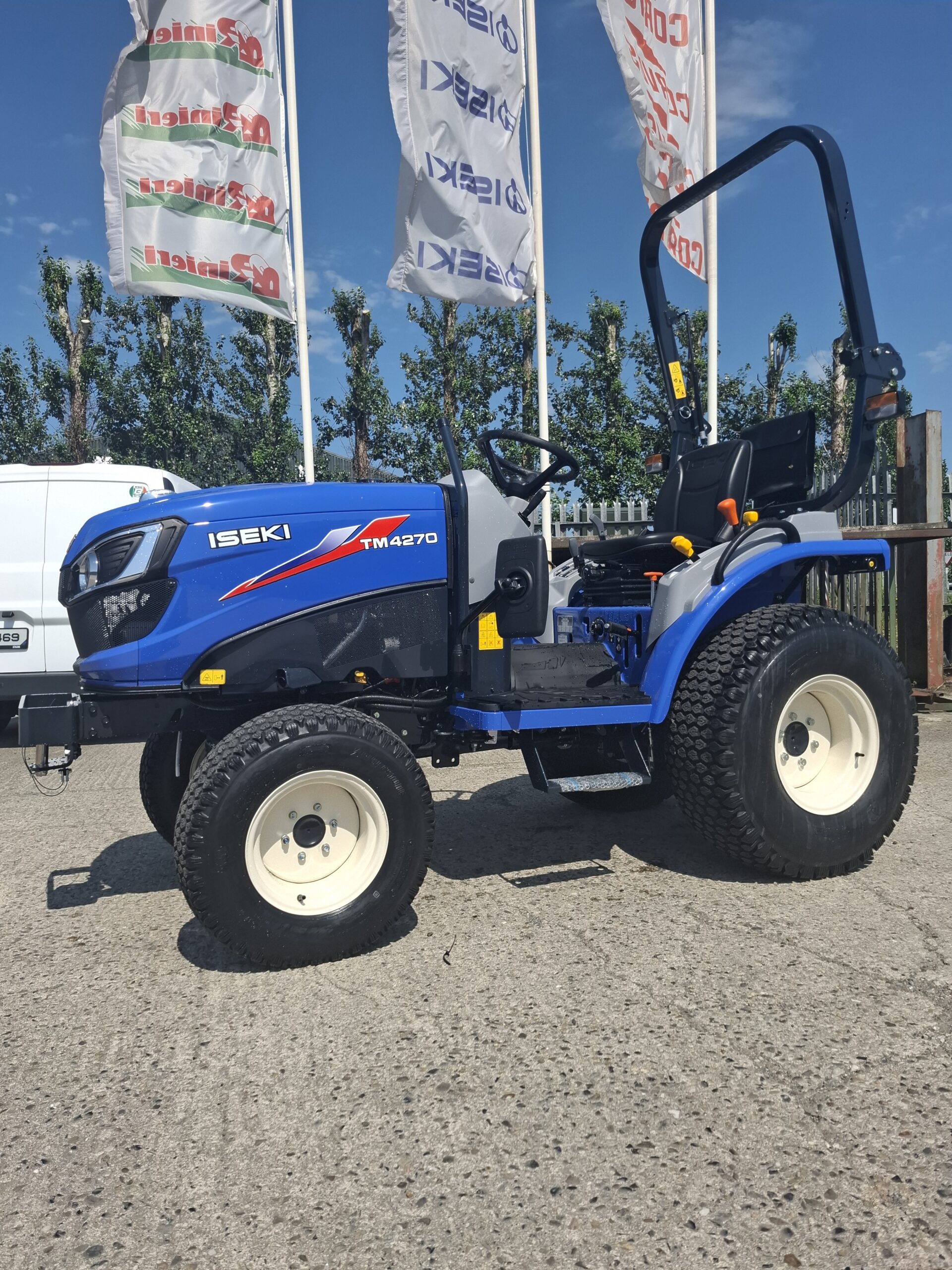

- Foldable ROPS
- Optional Mid-Mount Mowers in 54″ & 60″
- 540rpm rear and 2000 rpm mid PTOs as standard
- (TM3187) 928cc three-cylinder, clean-burn, liquid cooled, 16hp diesel engine
- (TM3187) F6/R2 Mechanical Transmission
- (TM3187) Lift Capacity of 540kg
Lightweight, But Powerful

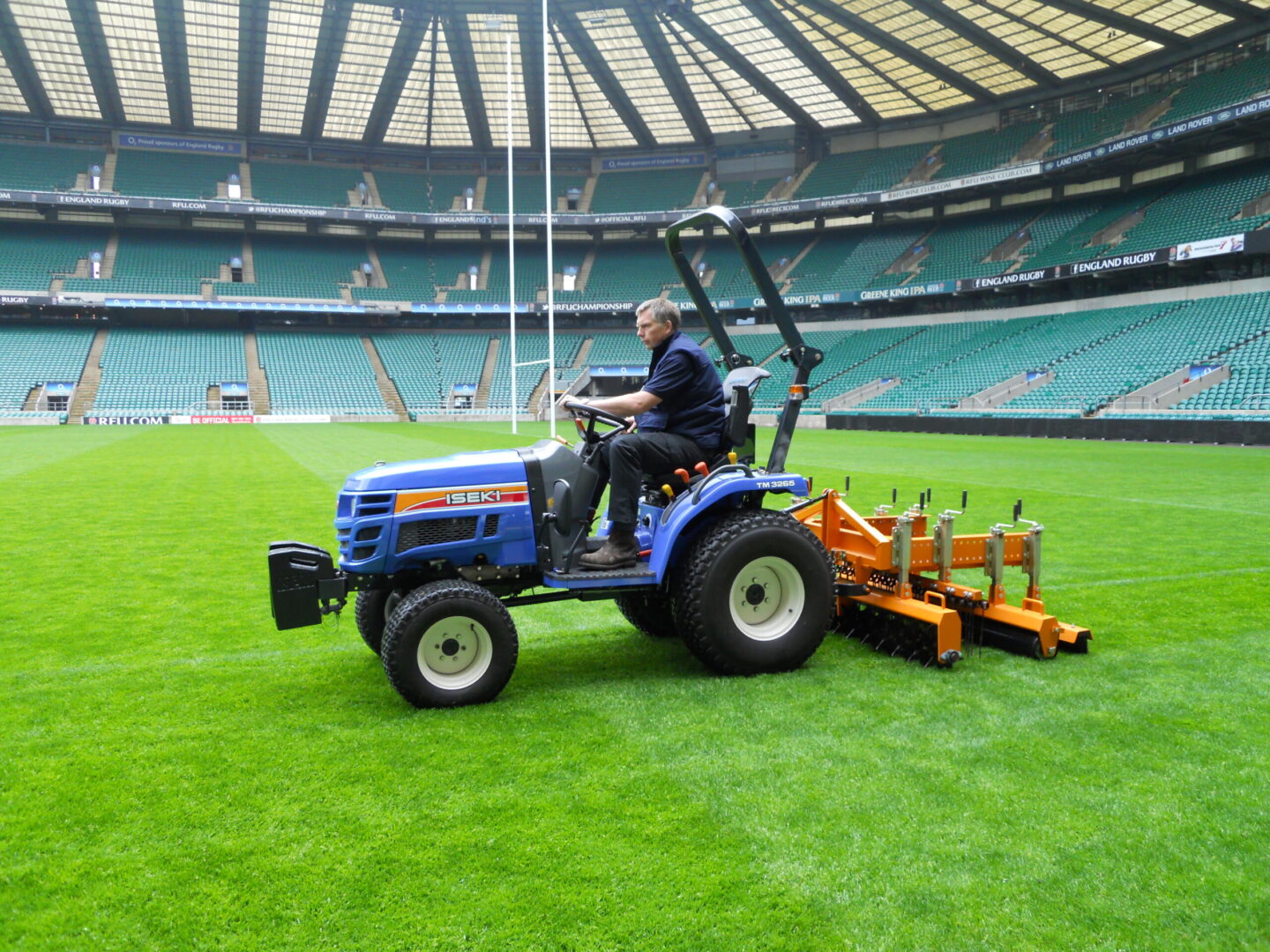

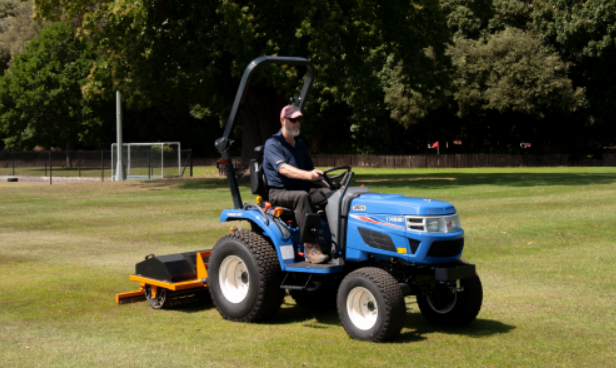

Where a powerful, high lift capacity compact tractor of up to 800kg is required, but you want to avoid damage to turf, whether it’s artificial or natural, the TM’s low total weight of 870kg and low ground pressure is ideal for delicate sports turf areas.
The ISEKI TM Range is small and compact in size making it’s ability to navigate tight areas outstanding. It’s selectable 4WD, along with it’s sturdy front and rear axles allow it to handle the toughest of conditions.
Manual VS Hydrostatic Transmission
The TM Range is available in both the versatile manual transmission and easy to use hydrostatic transmission.
Depending on the work that is planned for the tractor, this will determine which transmission type is more suitable for both the operator and the implements.
Hydrostatic Transmission

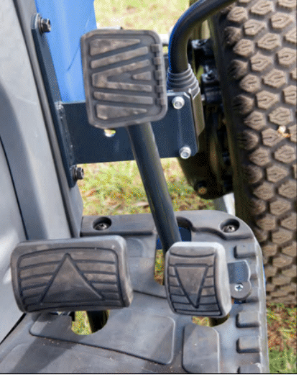

Ideal for when working with loaders or mowing whereyou are constantly changing speed and direction, the HST transmission allows for easy use and less fatigue on the operator due to the simple pedal forward and reverse control. It comes with three ranges to suit the demands along with 4WD and diff lock as standard on all models.
With Auto Throttle you can control tractor speed and engine revolutions by depressing the HST pedal. For where a more consistent speed is required, the Auto Throttle controls the engine revs, allowing for more fuel efficient use, whilst also making the tractor very easy to use.

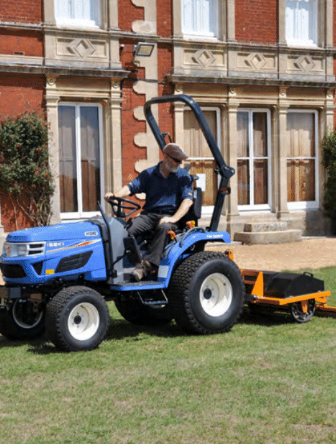

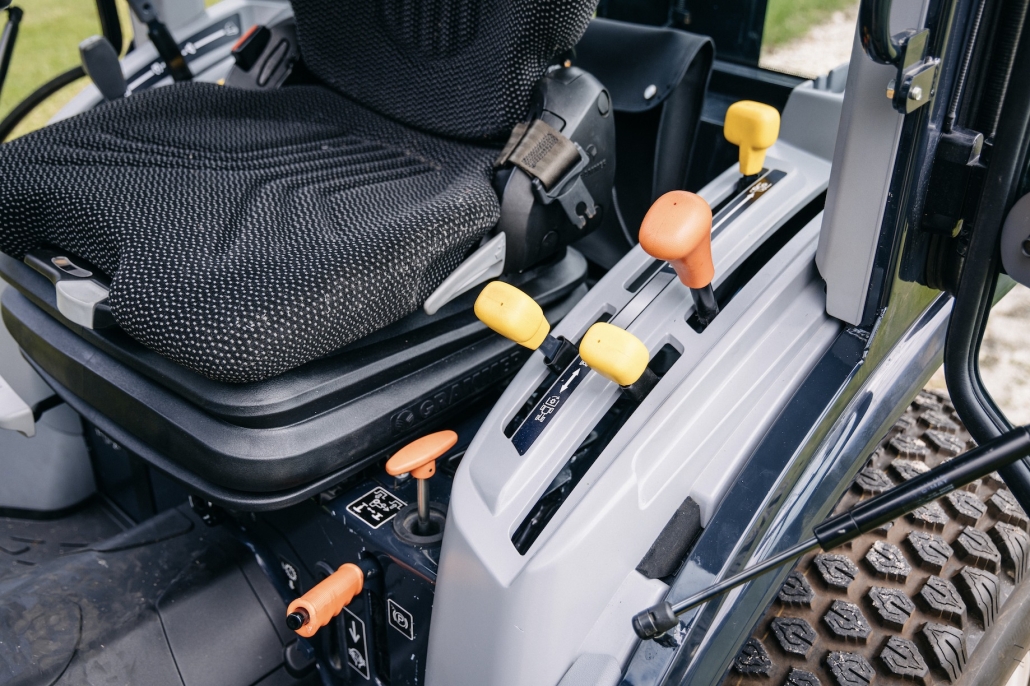

Versatile Manual Transmission
For total operator control, with synchronised forward and reverse shuttle, the manual transmission with 8 forward and 8 reverse gears is perfect for quick and easy changes whilst out working. Perfect for running ground engaging pieces of equipment where a consistent speed is required.
Mid and Rear PTO
Both the TM3217 and TM3267 come with 540 rpm rear and 2000 rpm mid PTO’s as standard. The HST models have a independent PTO, allowing full control of the tractor speed whilst separately controlling the PTO. Additionally to this they have a soft start which reduces shocks to the PTO on engagement.

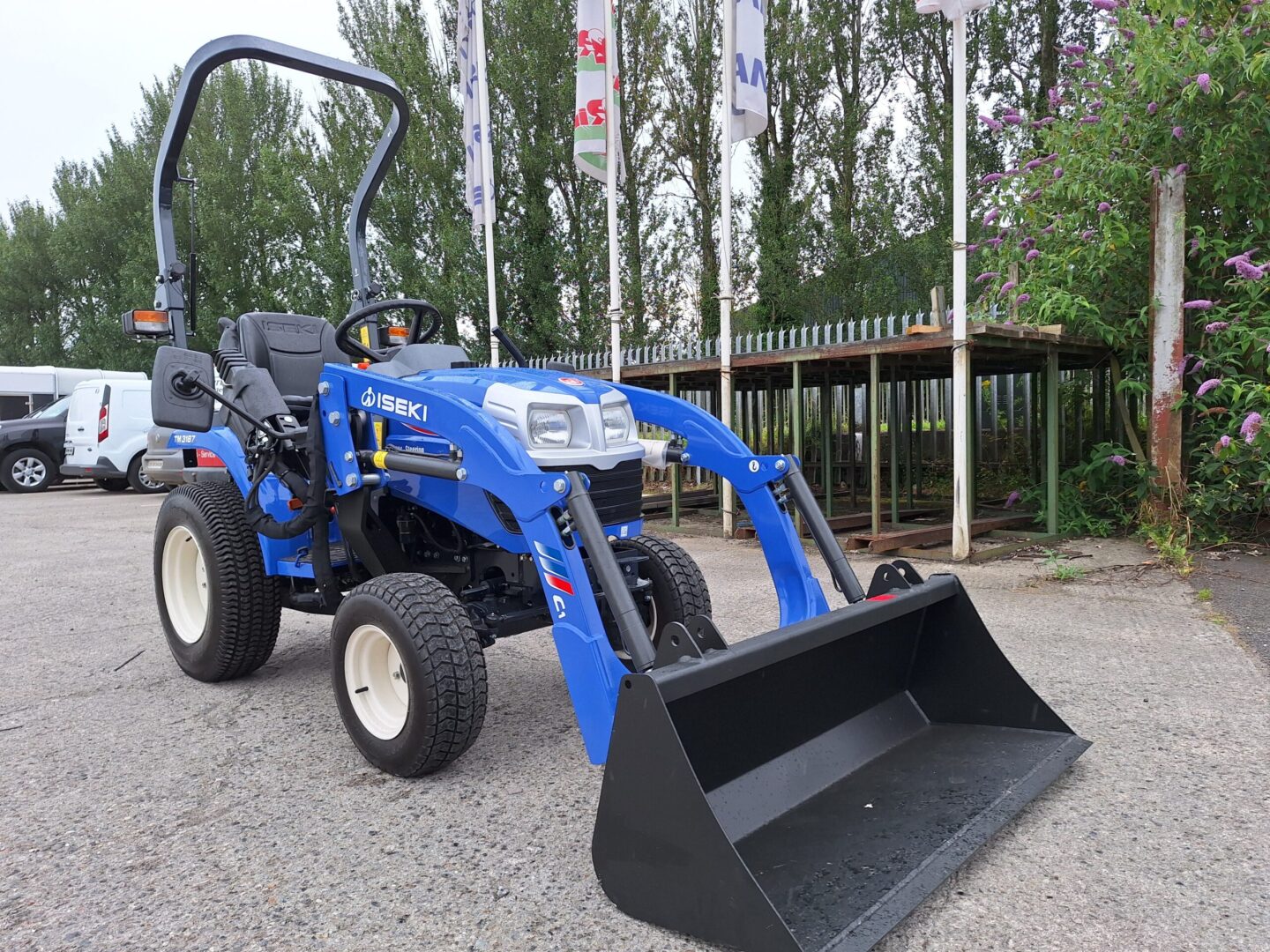

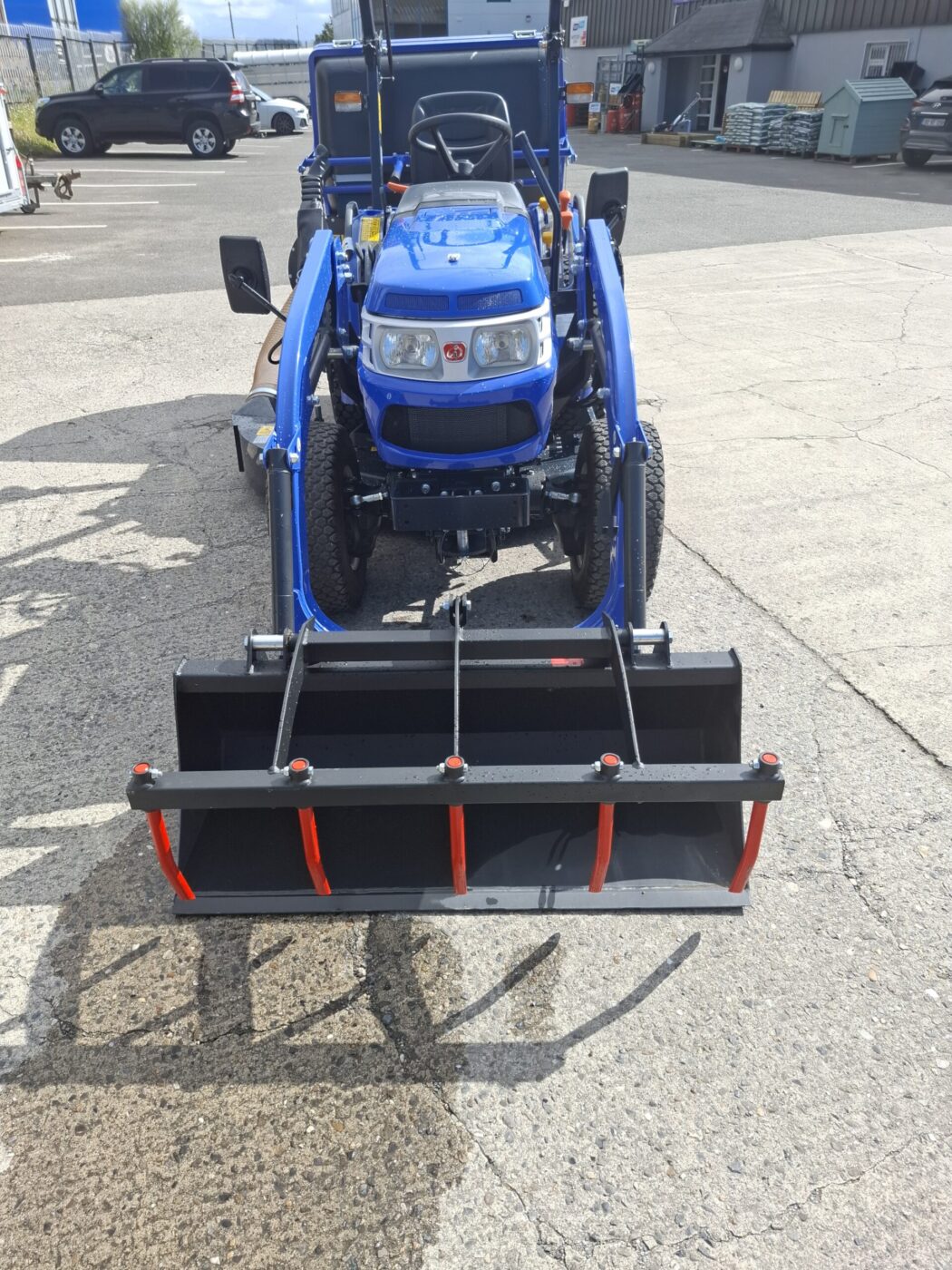

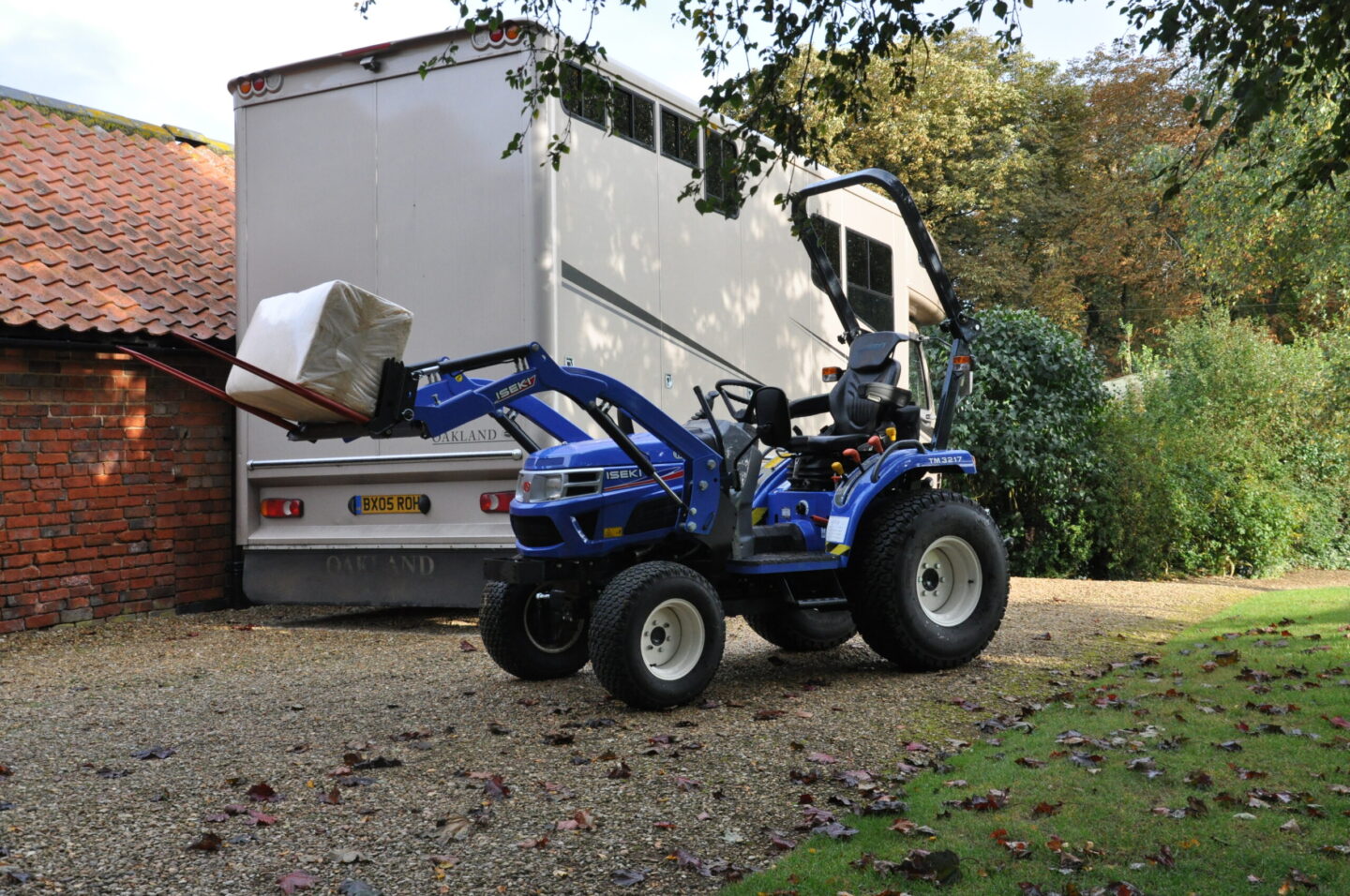

Loader

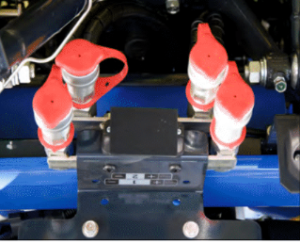

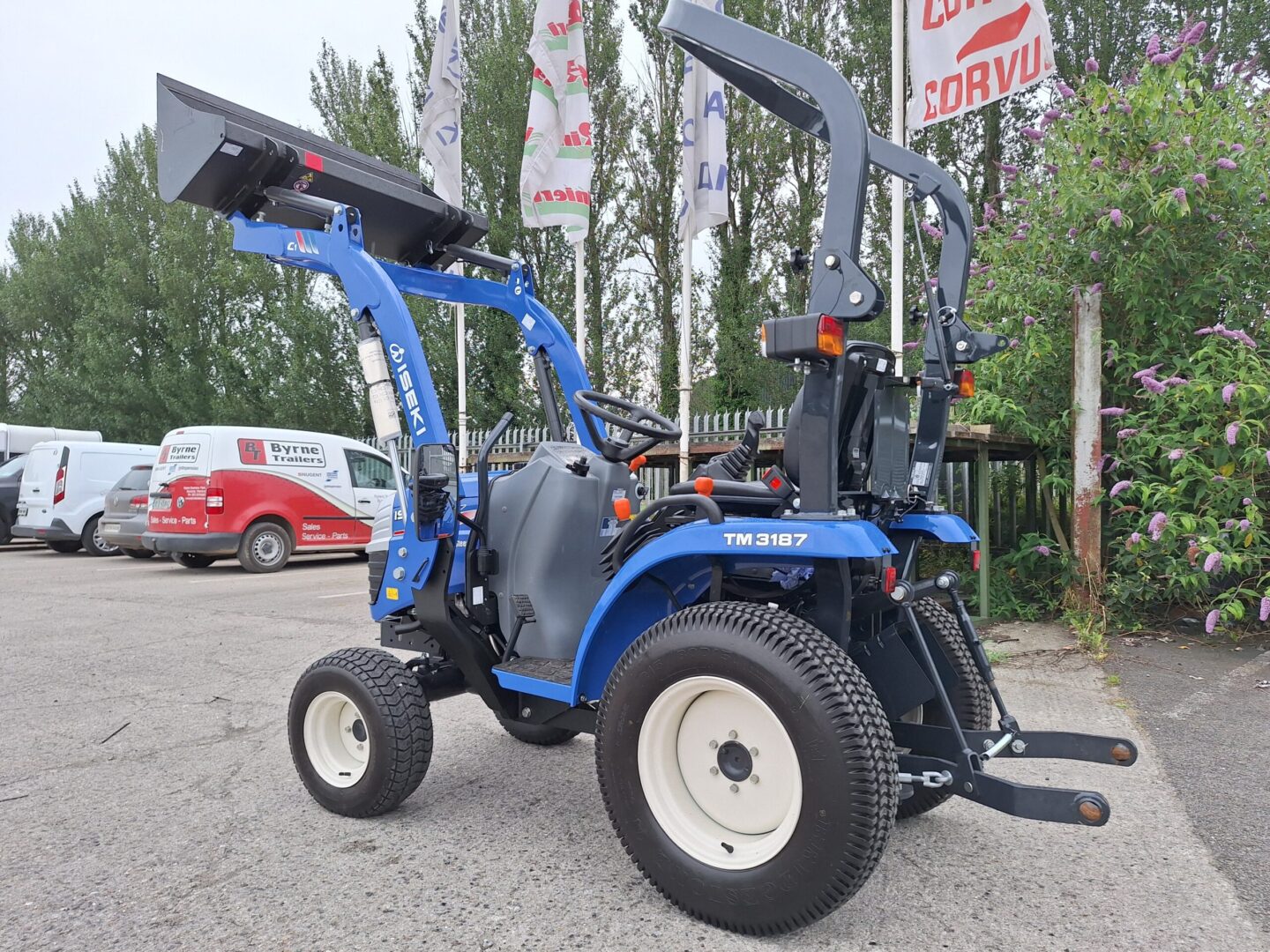

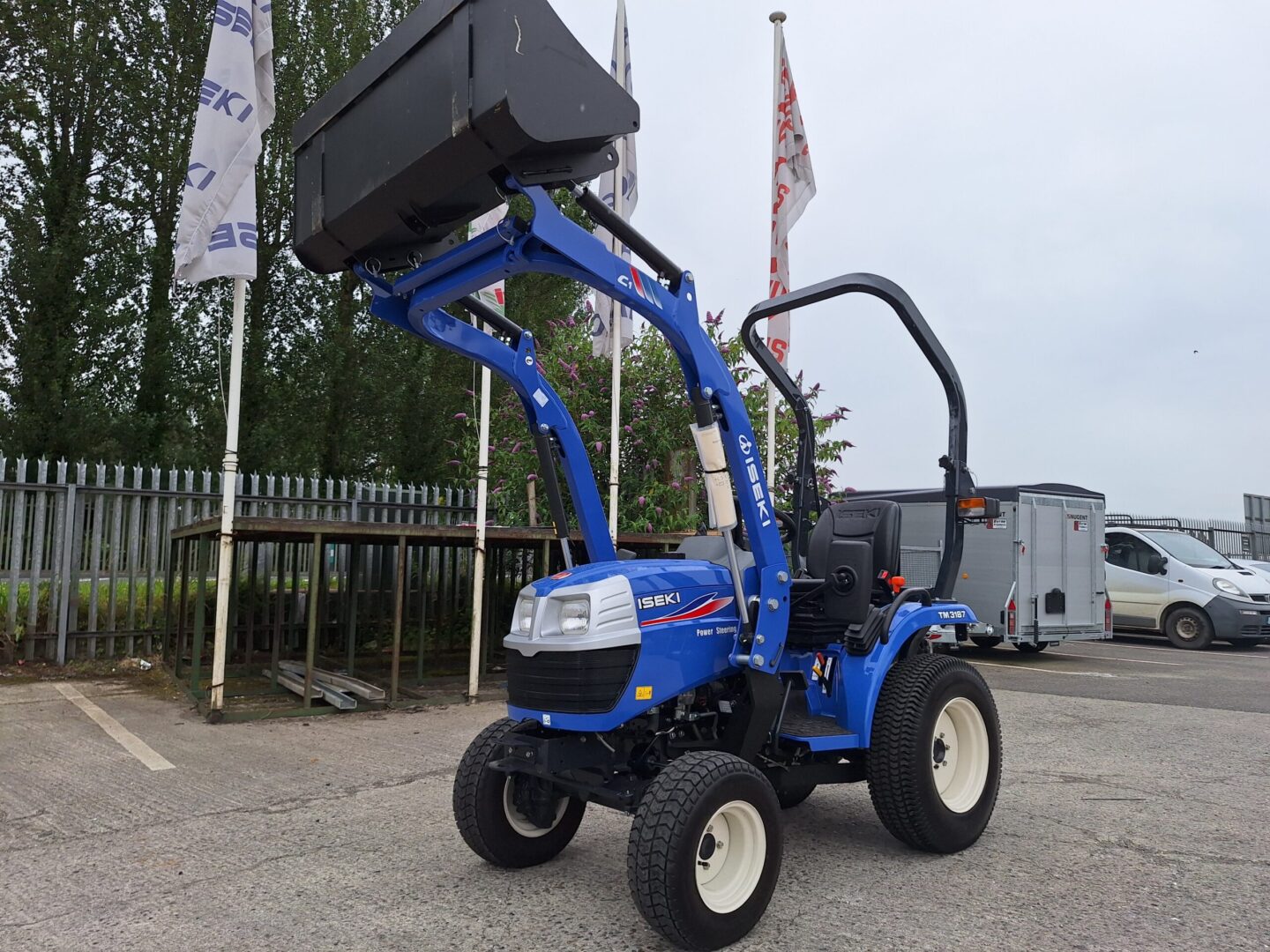

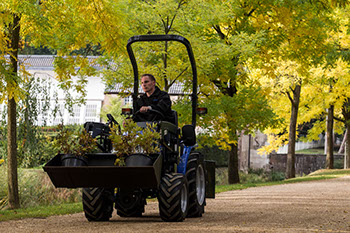

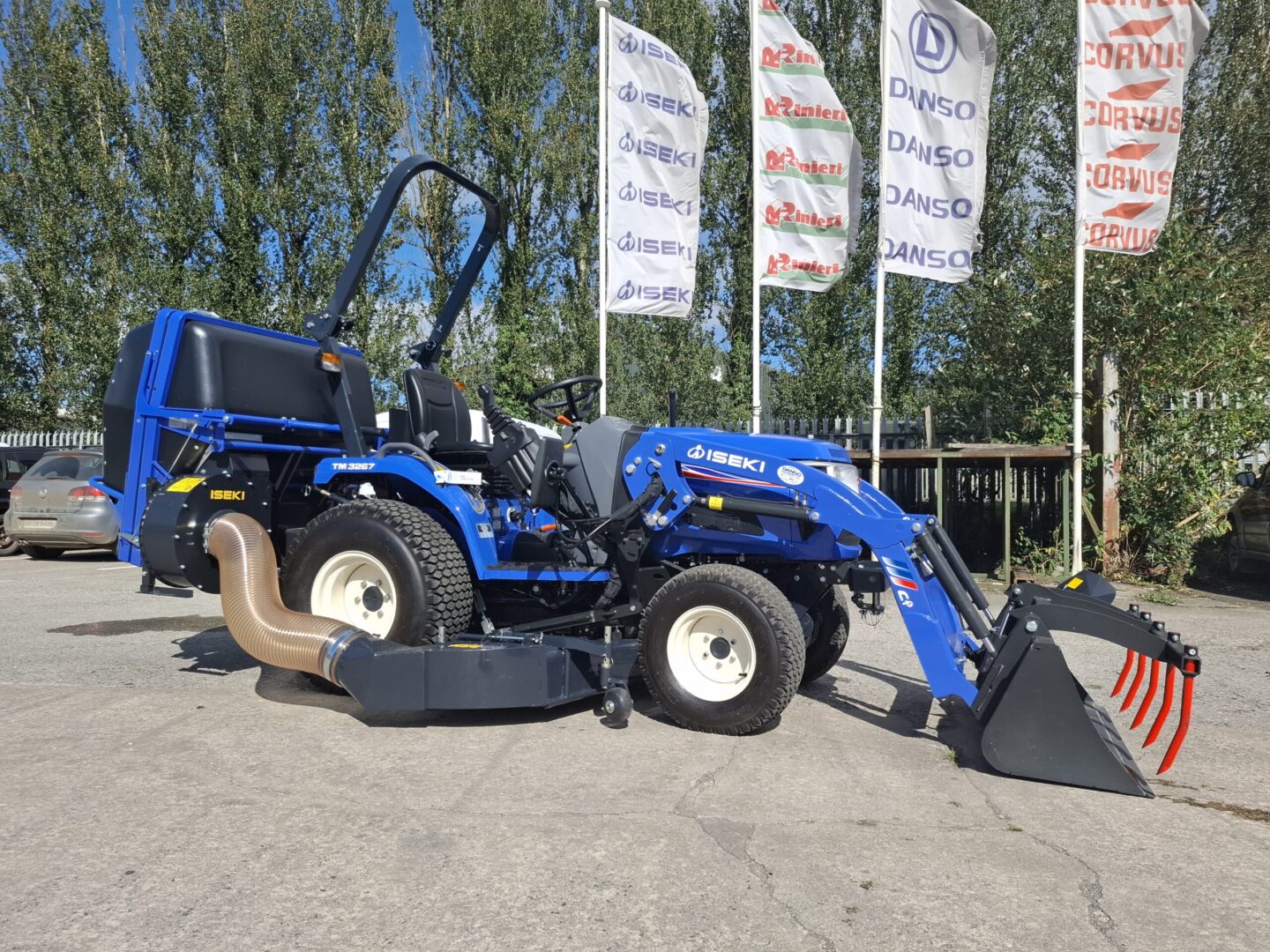

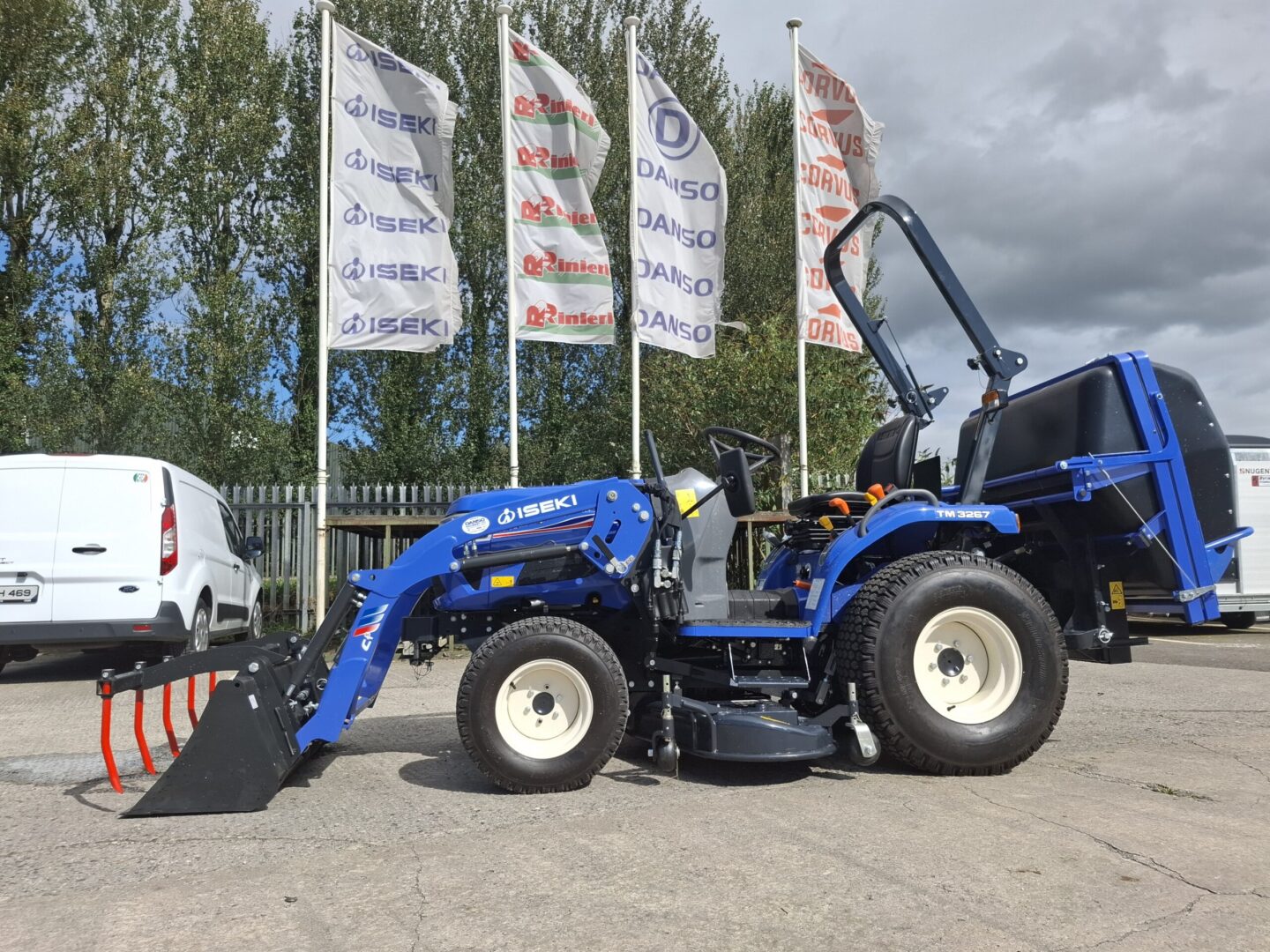

Available as an optional accessory the loader comes as standard with quick attach for the implements and built in demount stands allowing quick removal of the loader from the tractor. An optional third function is available for the operation of multi service and 4-in-1 buckets and muck grabs.

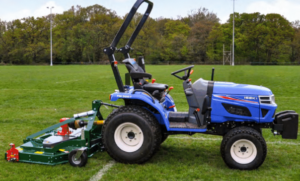

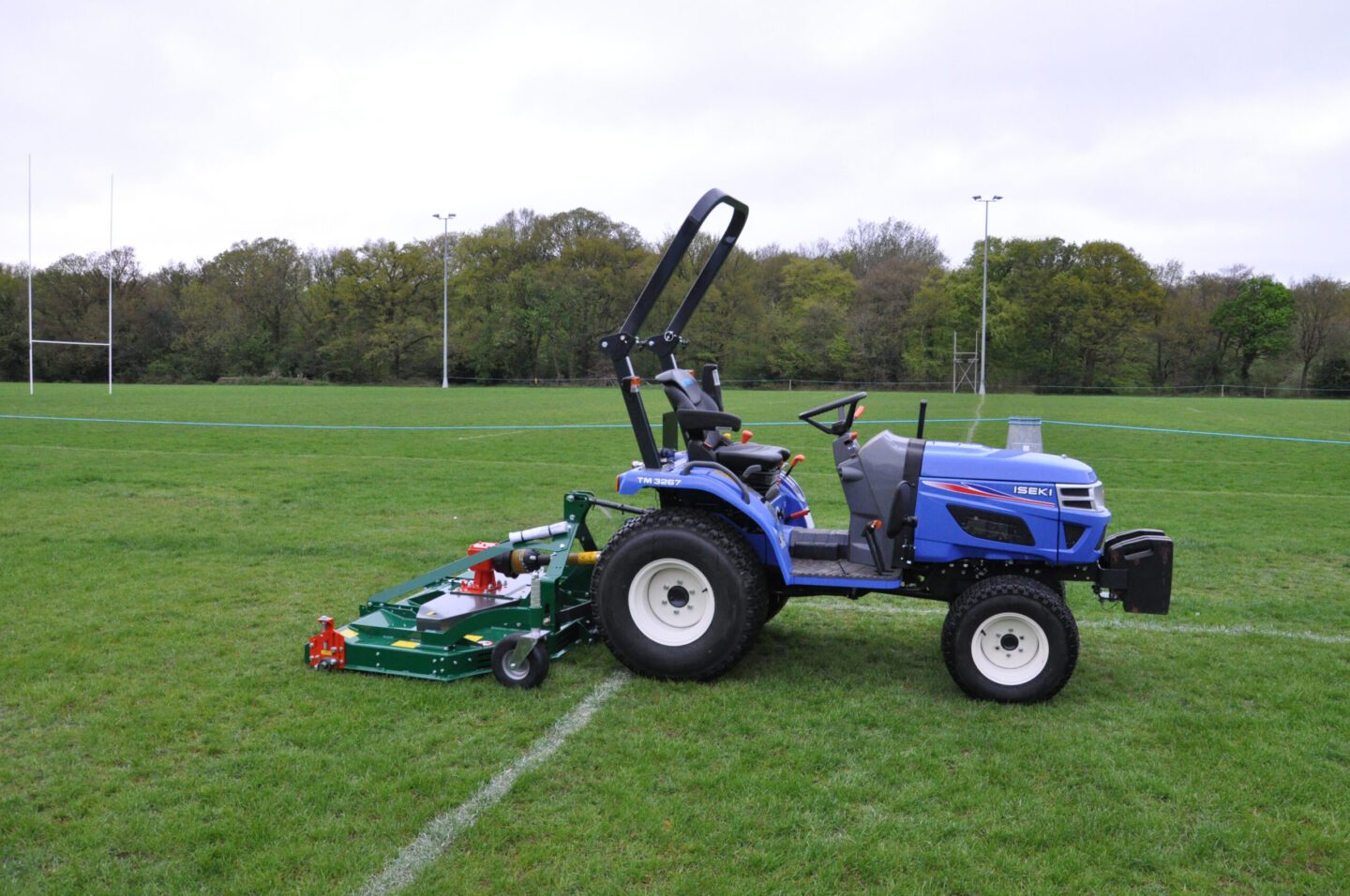

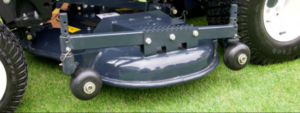

Mid-Mount Mower
Optional Mid-Mount Mower available in 54”rear, side and mulching decks plus a larger 60” side discharge mowing deck that can all be easily fitted. Manufactured in high strength steel to ensure it’s tough and durable, suitable for everyday use.
Grass Collector System
Attached via the 3 point rear linkage the TM tractor range can also be fitted with a collector system to use in conjunction with a side discharge deck and hose kit.With the option of low or high dump to suit the disposal facilities used the collector also has a large capacity of 550 litre or 600 litre with high tip for the option of a neat collected finish where required.
