ISEKI TG Compact Tractor Range

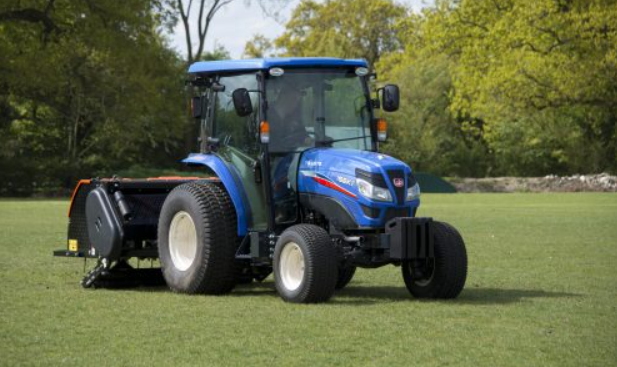

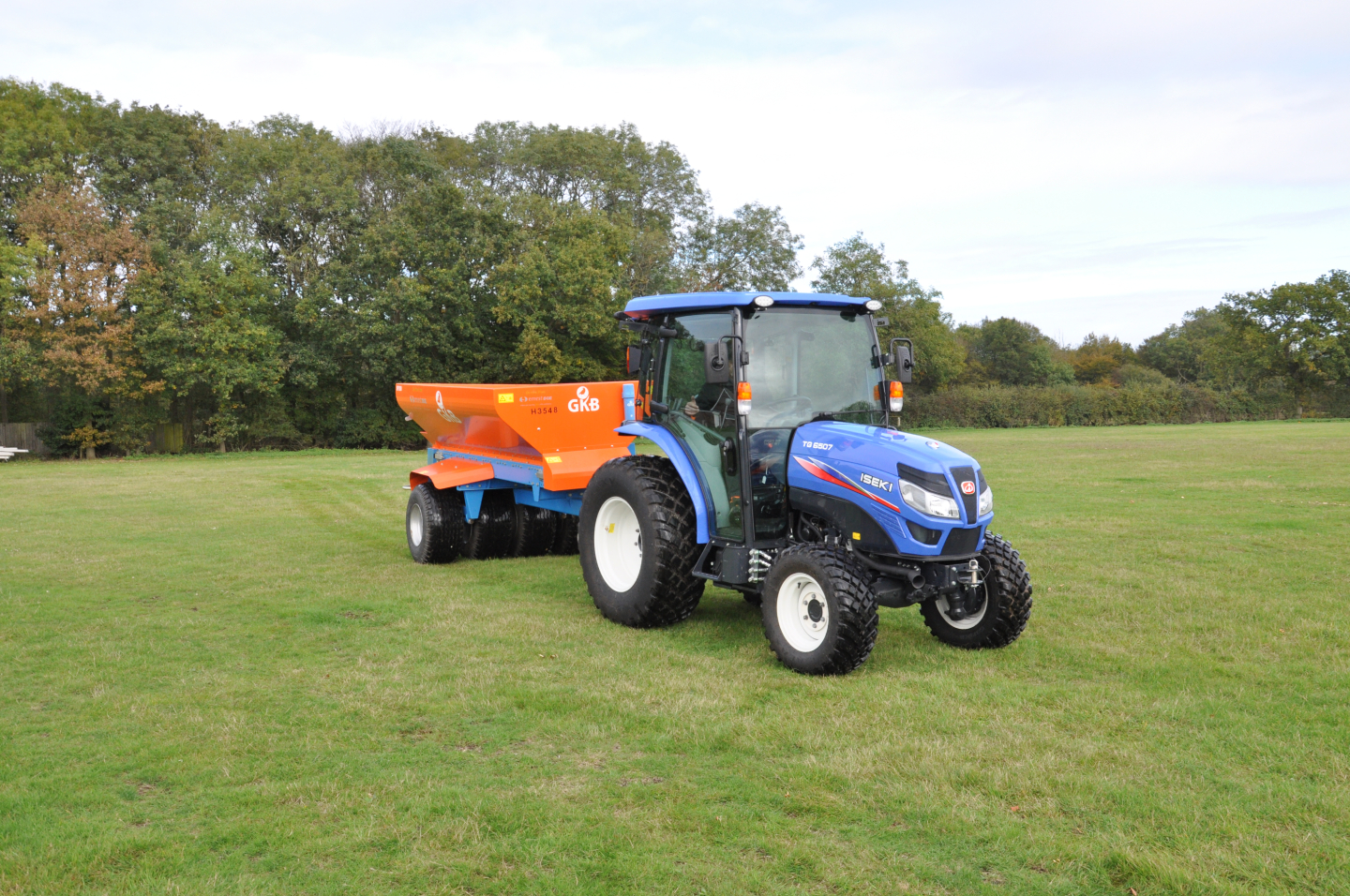

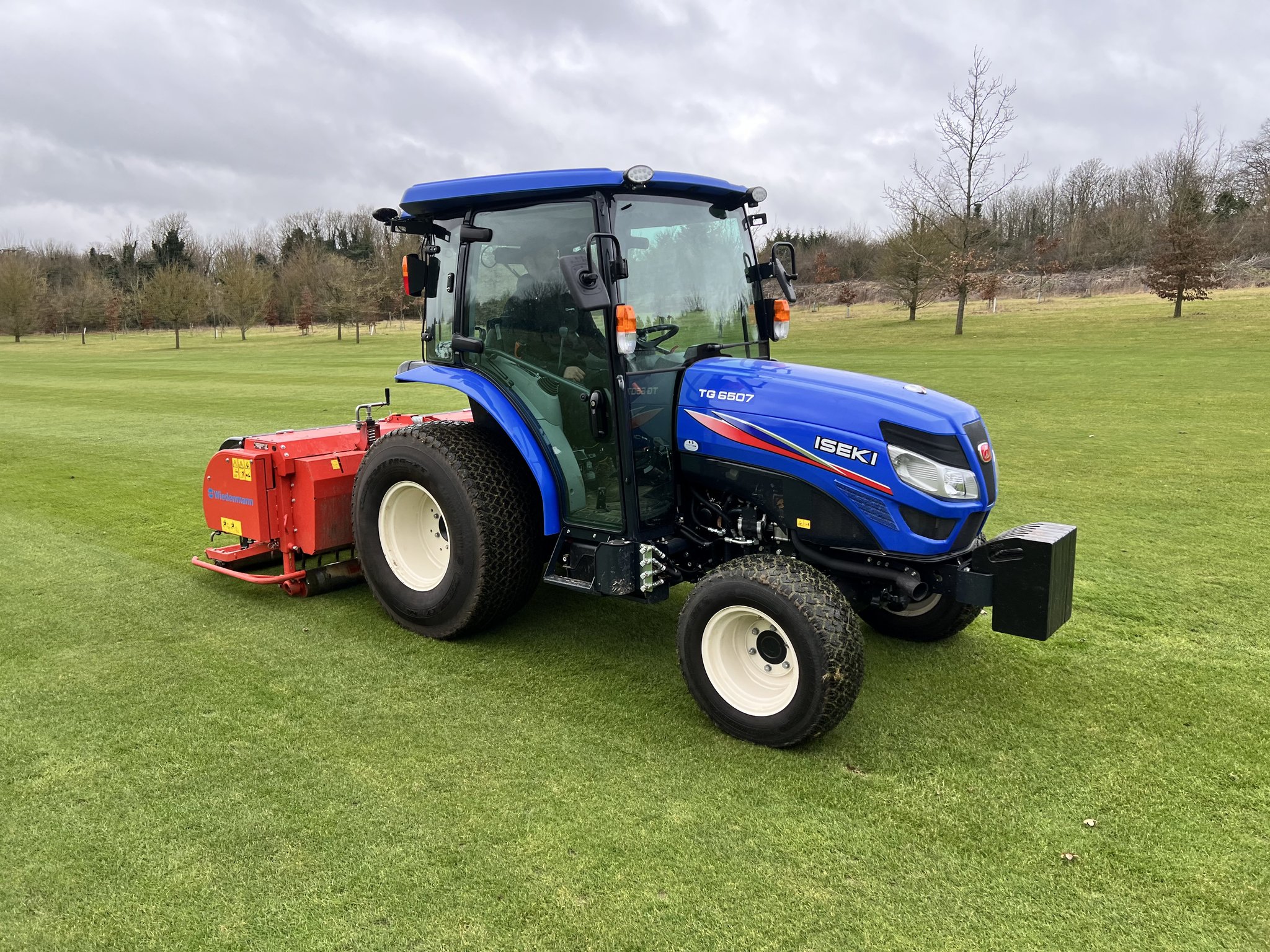

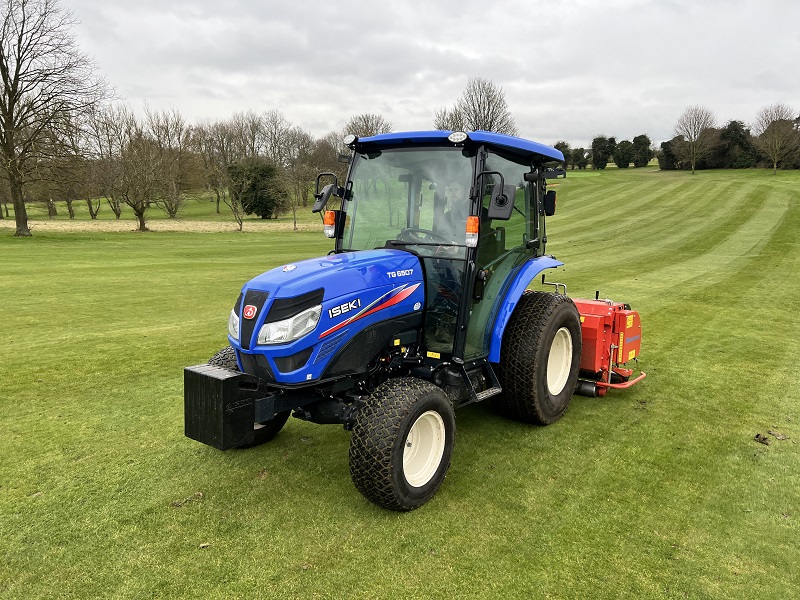

Ideal for high specification aeration and turf maintenance on sports pitches, the TG is the most advanced tractor in the ISEKI range with 40-67hp engines.
TG6407 Compact Tractor
- Water- cooled 3-cylinder, 1,826cc, 40hp diesel engine
- Innovative IQ dual-clutch gearbox with F24/R24
- 3-point linkage capacity of 1,270kg

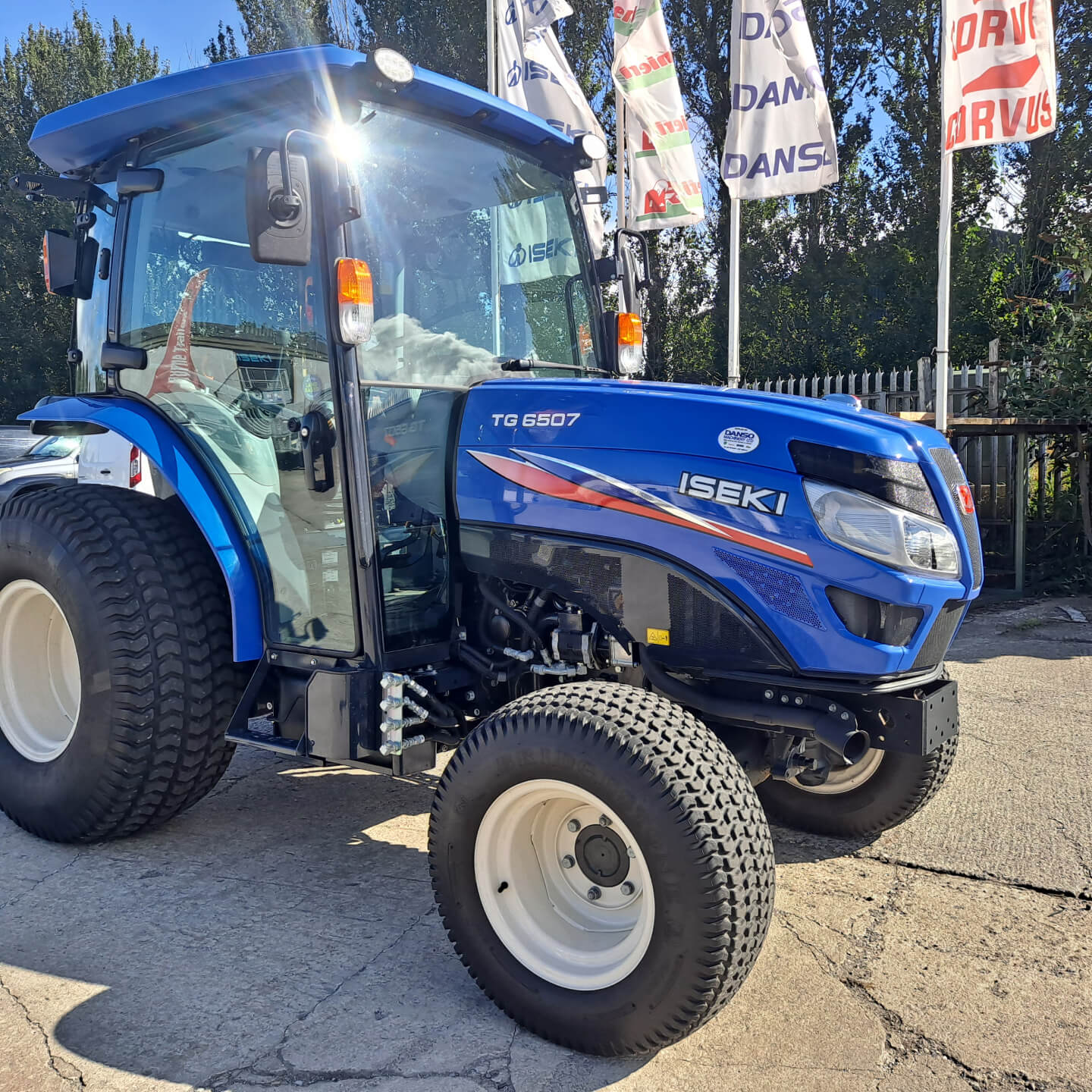

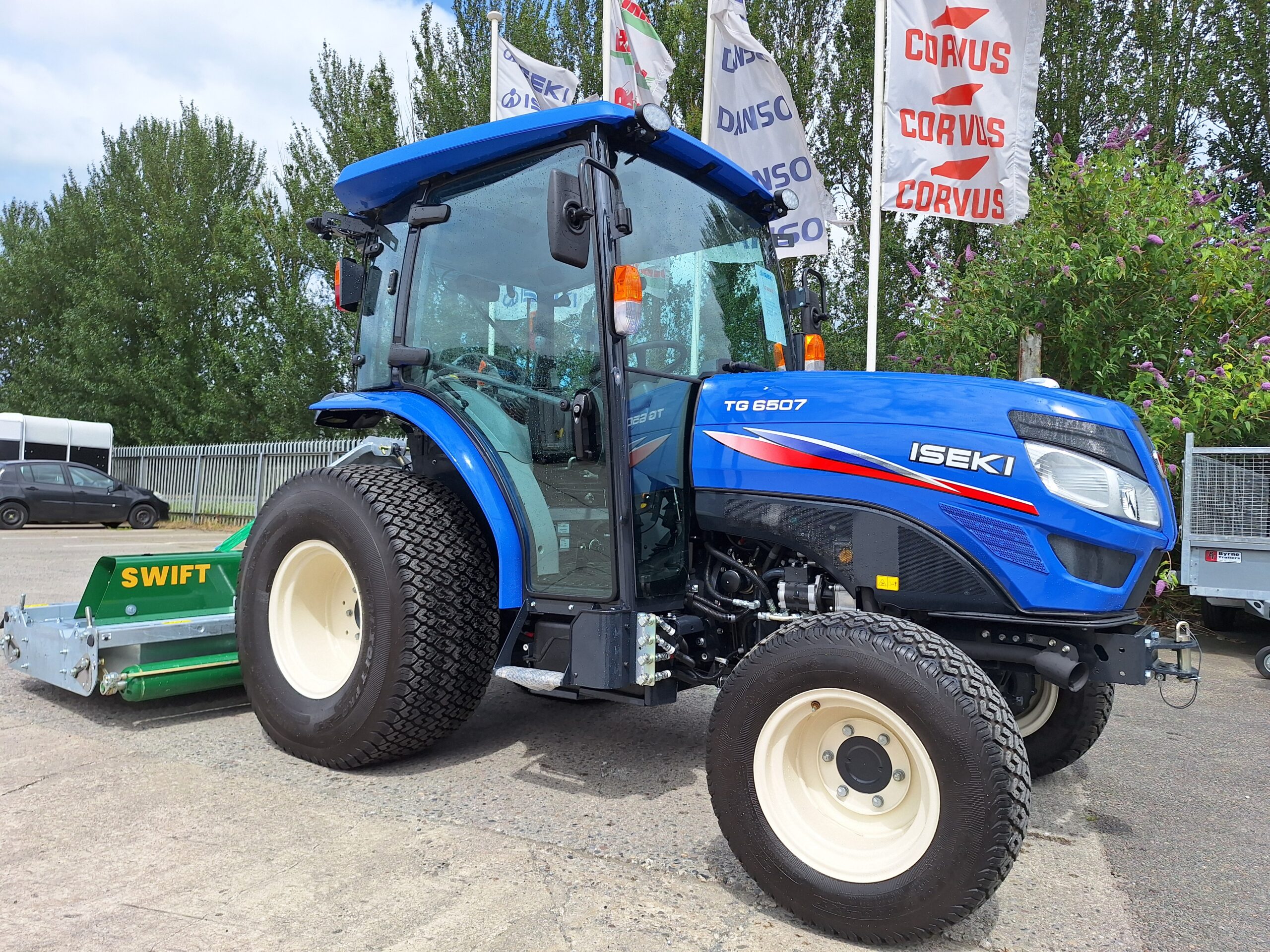

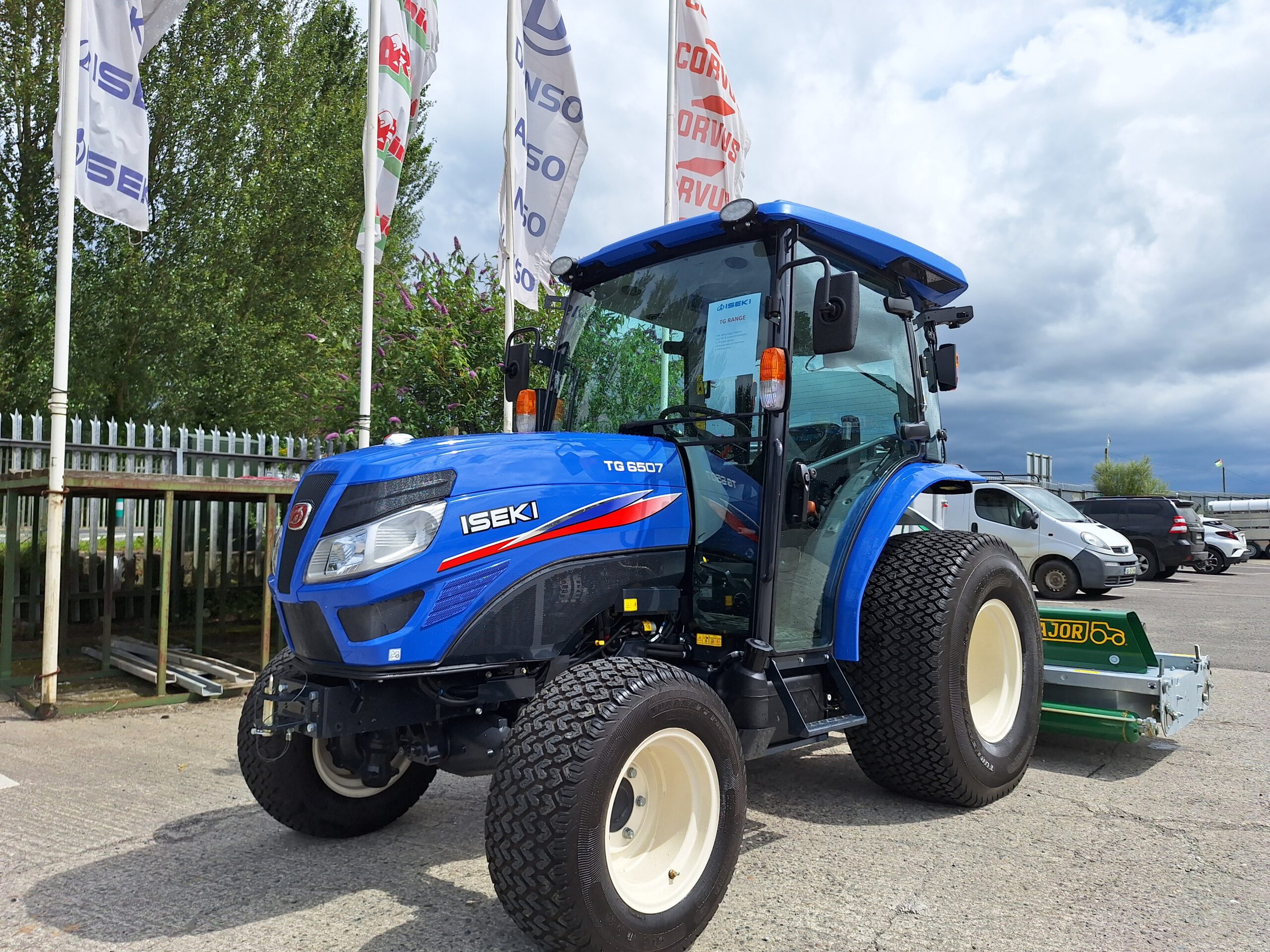

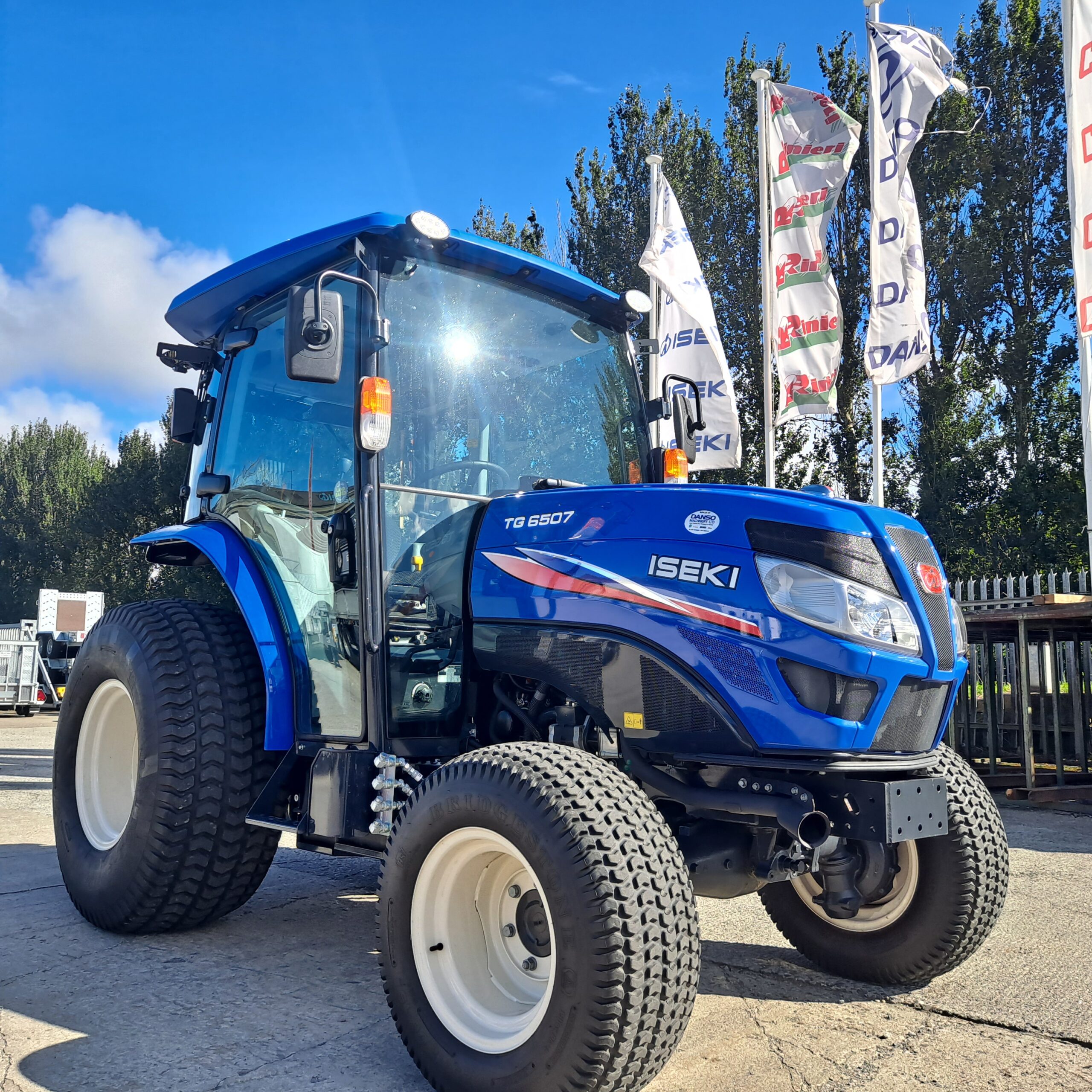

TG6507 Compact Tractor
- Water- cooled 4-cylinder, 2,434cc, 49hp diesel engine
- Innovative IQ dual-clutch gearbox F24/R24 with finger-tip shuttle control
- OR 3 Range HST Transmission with Hi/Lo selection (F6/R6)
- 3-point linkage capacity of 1,580kg

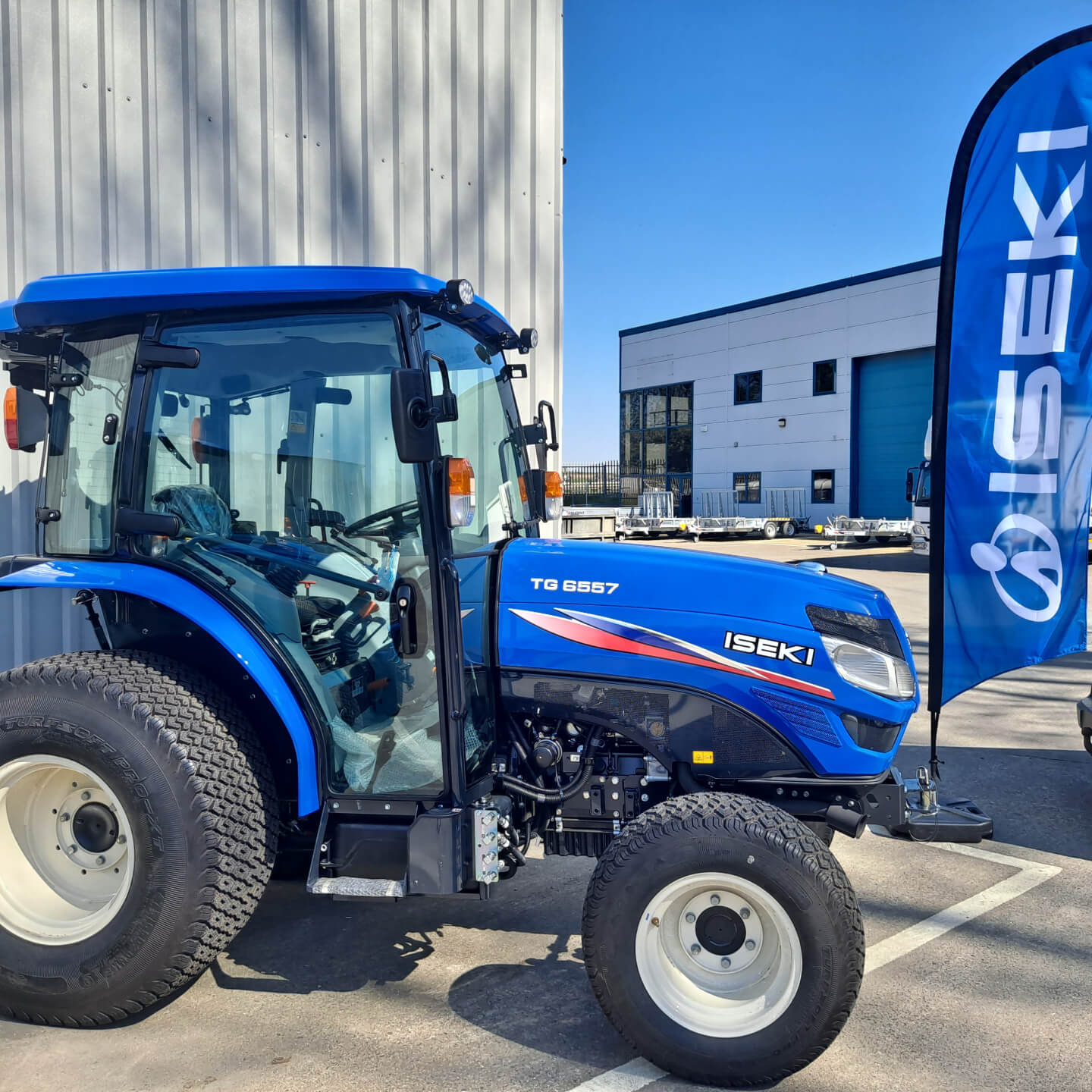

TG6557 Compact Tractor
- Water- cooled 4-cylinder, 2,434cc, 55hp turbo diesel engine
- F12/R12 Transmission with Powershuttle & draft control
- 3-point linkage capacity of 1,580kg
TG6687 Compact Tractor
- Water- cooled 4-cylinder, 2,434cc, 67hp turbo diesel engine
- F12/R12 Transmission with Powershuttle & draft control
- OR 3 Range HST Transmission with Hi/Lo selection (F6/R6) and finger-tip electronic shuttle control lever
- 3-point linkage capacity of 1,600kg
TG Tractor Range

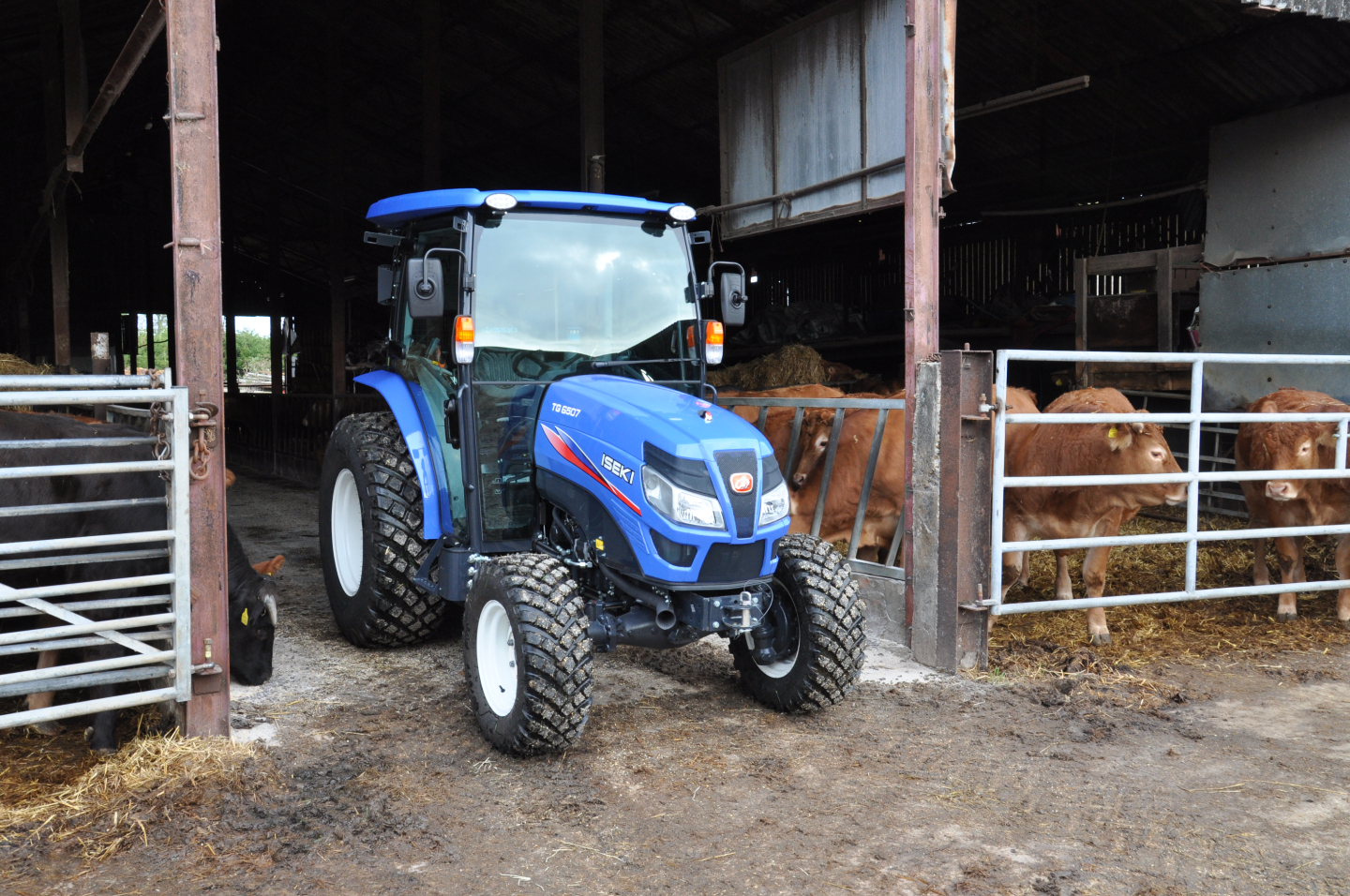

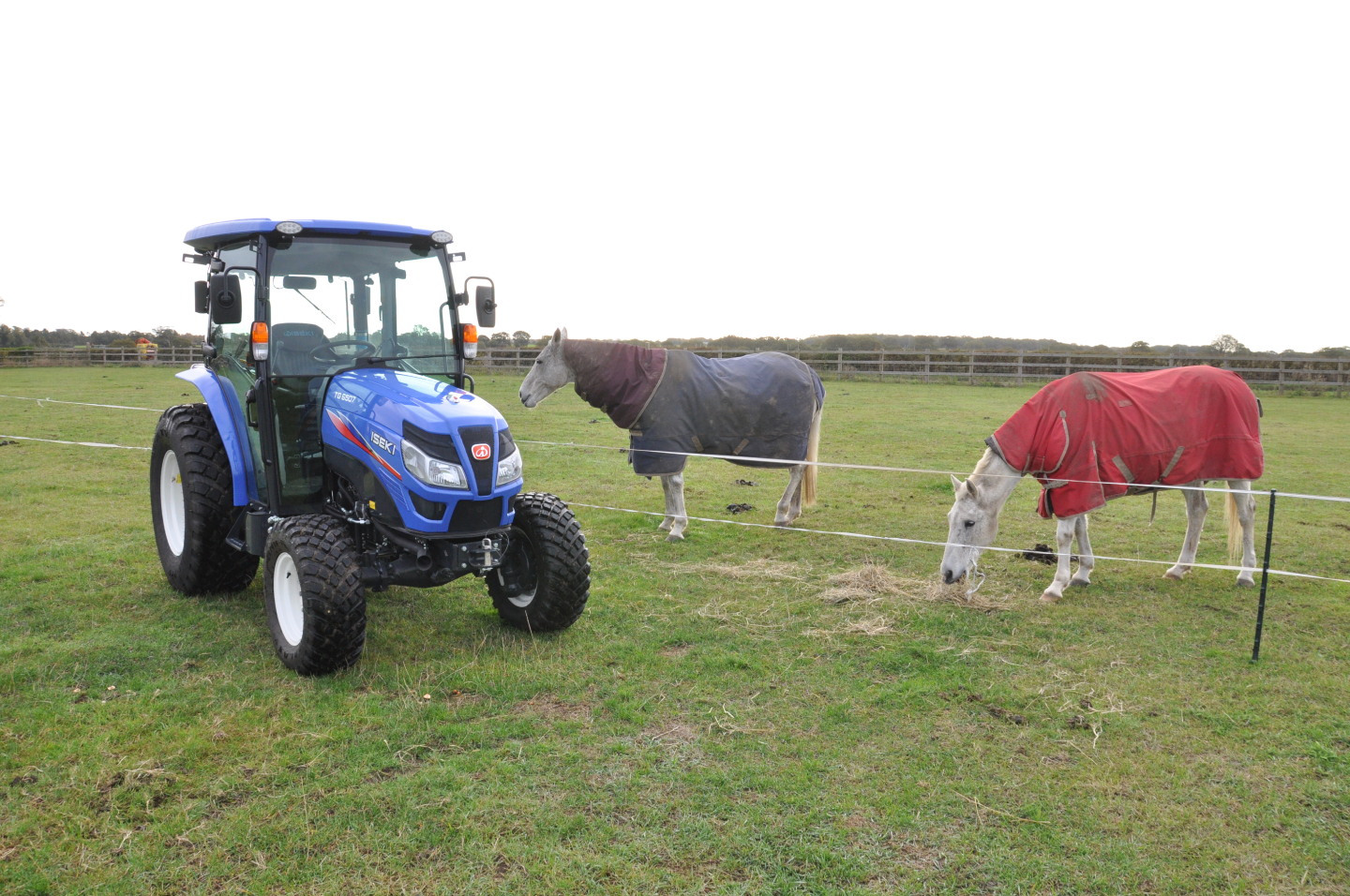

Ideal for high specification aeration and turf maintenance on sports pitches, the TG is the most advanced tractor in the ISEKI range with 40-67hp engines. Compact in size with all the accessories and options of the higher specification agricultural tractors, the TG can also be used in farming for easy access to cowsheds and farms where space is limited. The technology allows for easy operation and less fatigue on the driver.
Features at a glance:
- 40hp – 67hp diesel engine
- F12/R12 Transmission with Powershuttle & draft control (TG6557 & TG6687)
- Innovative IQ dual-clutch gearbox F24/R24 with finger-tip shuttle control (TG6407 & TG6507)
- 3 Range HST Transmission with Hi/Lo selection (F6/R6) (TG6507 & TG6687)
- Intuitive operating controls
- Hydrostatic Power Steering
- Selectable 2WD & 4WD
- 540/750 rpm Rear PTO
- 2000 rpm mid PTO
- Spacious cabin with excellent all-round view and driver comfort
- Loader joystick and valve fitted as standard
- Supplied with two double-acting auxiliary valves
High lift capacity doesn’t have to be high horse power

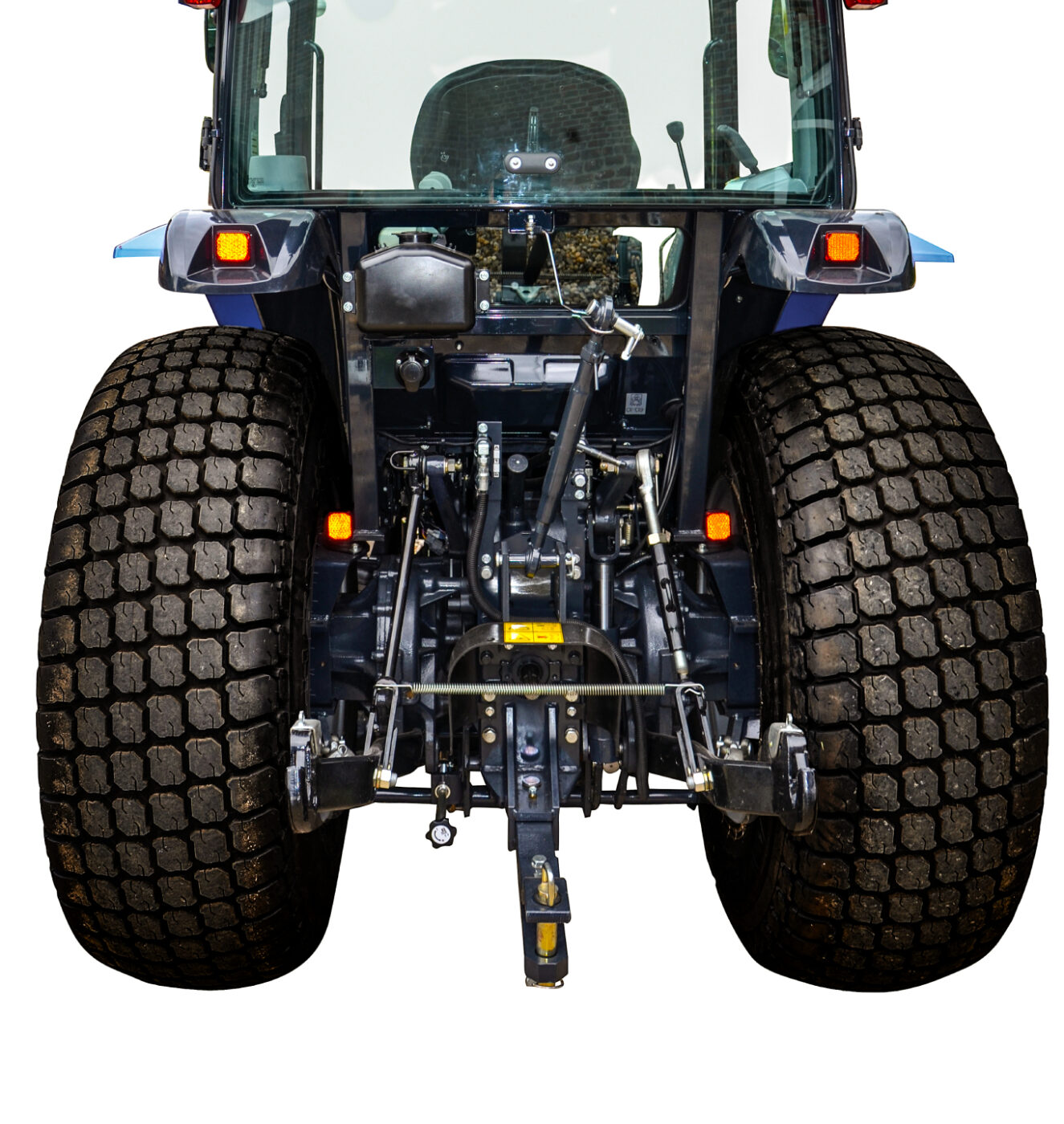

With superior lift capacities up to 1600kg the ISEKI TG6 range of compact tractors offers all you need to run implements without the need to increase the size or horsepower of your tractor. Manufactured with a 3-point, Category 1 hitch or Category 2 for the TG6687 model and rear PTO shaft at 540rpm and 750rpm operating independently from the operators seat.

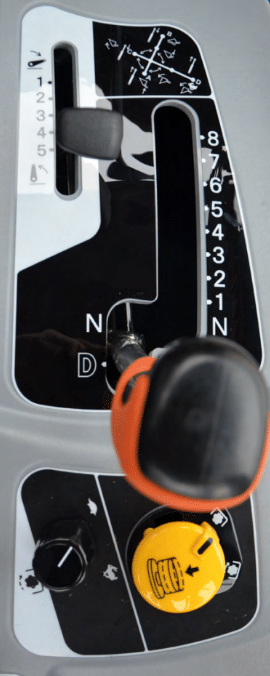

IQ Gearbox
Specific to the IQ range this powerful range of tractors come with an innovative dual-clutch gearbox, combining the ultimate comfortable automatic operation with the advantages of manual gear changes.
HST Controls
- Cruise Control: Once the working speed is achieved the cruise control can be set to remain a constant speed even if the HST pedal is released. Perfect for a variety of turf maintenance implements where accuracy is required.
- Memory/ Resume: When working the tractor on cruise control you can cancel the speed by depressing the brake whilst maneuvering, pressing the Cruise memory function allows the previously set speed to be resumed.
- Speed Control: To keep operators and the working environment safe the maximum achievable speed can be set to limit revs when the HST pedal is fully depressed.
- Response Control: This function allows the hydrostat to be adjusted to suit the job in hand, whether it is fast loader work or slow moving warehouse or stock movement.
Headland management system
Specific to the IQ range of TG tractors the Headland management controls are perfect for when working with turf maintenance implements as an example. PTO Stop/Start function allows you to stop the PTO when the link arms are raised for ease of operation.
PTO Stop in reverse lifts the arms to a preset ehight if reverse gear is selected to prevent any damage to implements, these are fully adjustable.
Four wheel drive activation for the ultimate control whilst working and electronic draft control.

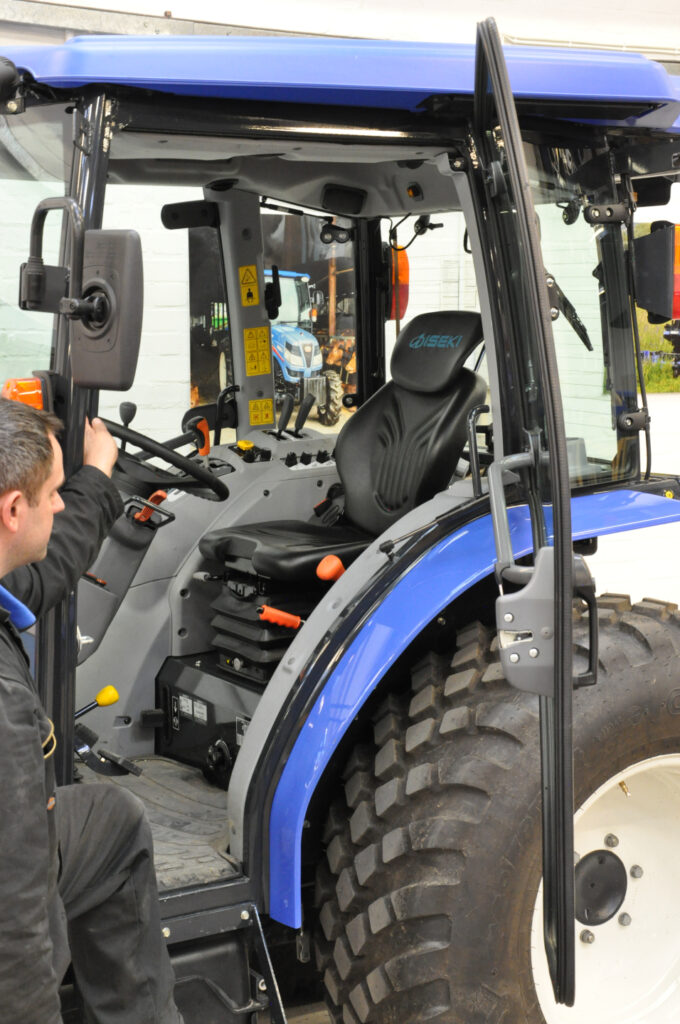

Spacious and comfortable cabin
A spacious factory fitted cabin is available on all models. Fitted with air conditioning as standard. All control elements are extremely clear and positioned in a readily accessible manner within the field of vision of the driver, reducing fatigue.

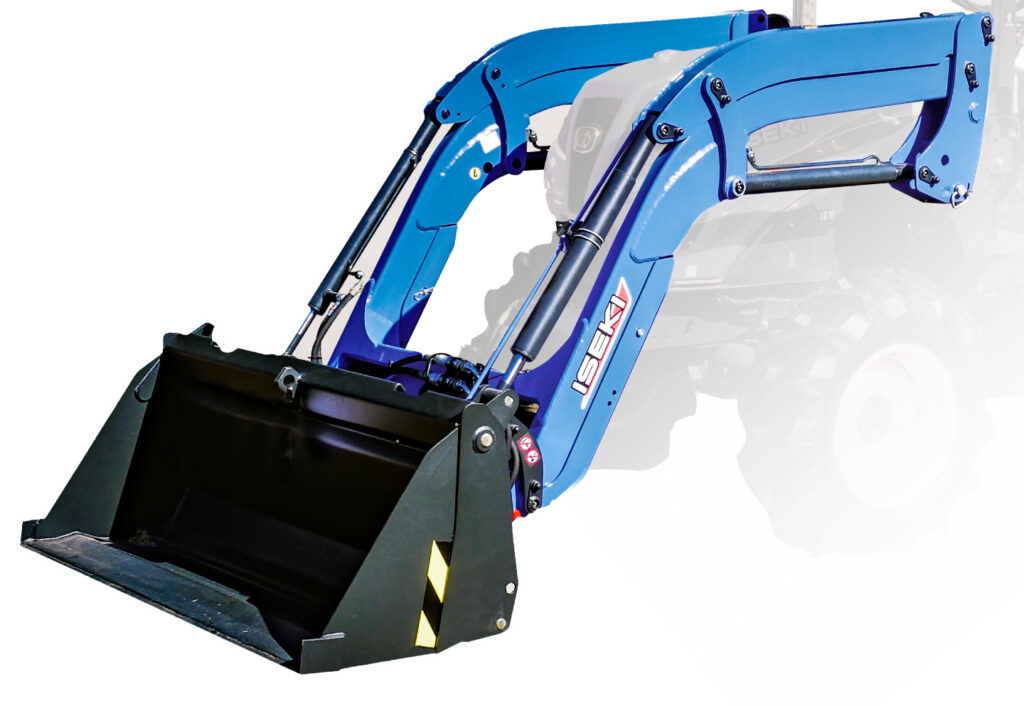

Loader longevity
The MX Loaders can be fitted to all of the TG Range for added functionality. C3 and C4 are standard whilst the C3+ and C4+ loaders have mechanical self-leveling. All versions have drive-in quick attachments fitted to the tractor for ease of use and quick attachment of implements.
The TG Range at a Glance

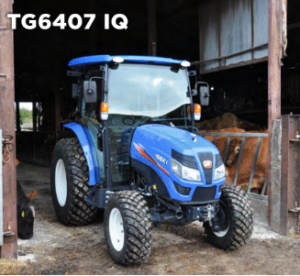

TG6407 IQ
- Water- cooled 3-cylinder, 1,826cc, 40hp diesel engine
- Innovative IQ dual-clutch gearbox with F24/R24
- 3-point linkage capacity of 1,270kg

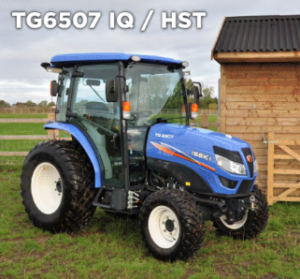

TG6507 IQ/HST
- Water- cooled 4-cylinder, 2,434cc, 49hp diesel engine
- Innovative IQ dual-clutch gearbox F24/R24 with finger-tip shuttle control
- OR 3 Range HST Transmission with Hi/Lo selection (F6/R6)
- 3-point linkage capacity of 1,580kg

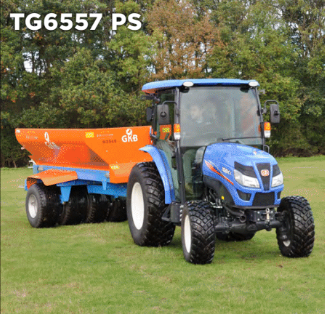

TG6557 PS
- Water- cooled 4-cylinder, 2,434cc, 55hp turbo diesel engine
- F12/R12 Transmission with Powershuttle & draft control
- 3-point linkage capacity of 1,580kg

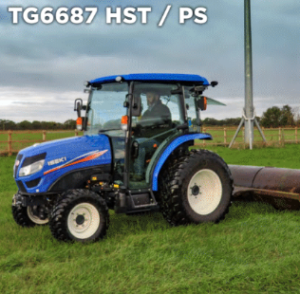

TG6687 PS/HST
- Water- cooled 4-cylinder, 2,434cc, 67hp turbo diesel engine
- F12/R12 Transmission with Powershuttle & draft control
- OR 3 Range HST Transmission with Hi/Lo selection (F6/R6) and finger-tip electronic shuttle control lever
- 3-point linkage capacity of 1,600kg
